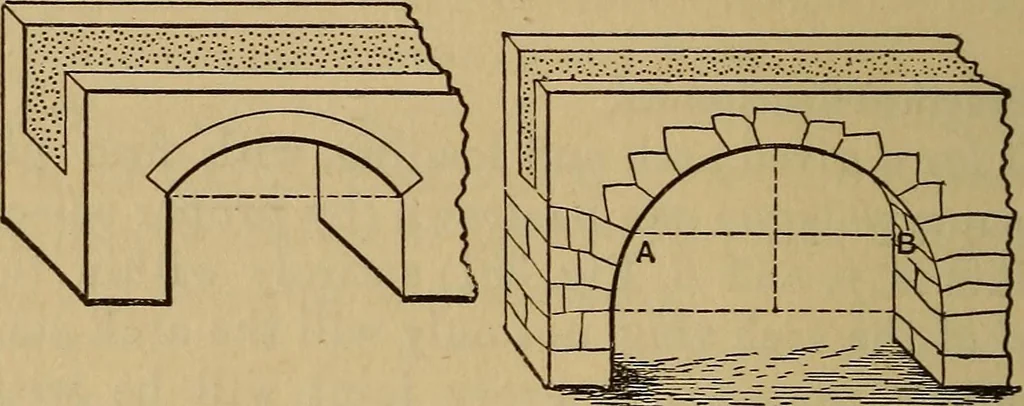

nt pressure on any joint is givenby the length of the proper ray in the force diagram. 428 MECHANICS OF ENGINEERING. ARRANGEMENT OF DATA FOR GRAPHICTREATMENT. 353. Character of Load.—In most large stone arch bridgesthe load (permanent load) does not consist exclusively ofmasonry up to the road-way… … Fig. 384. Fig. 385. ellipse, a compactly-built masonry backing is carried upbeyond the springing-line to AB about 60° to 45° from thecrown, Fig. 385; so that the portion of arch ring belowAB may be considered as part of the abutment, and thusAB is the virtual springing-line, for graphic treatment.…
