Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 458

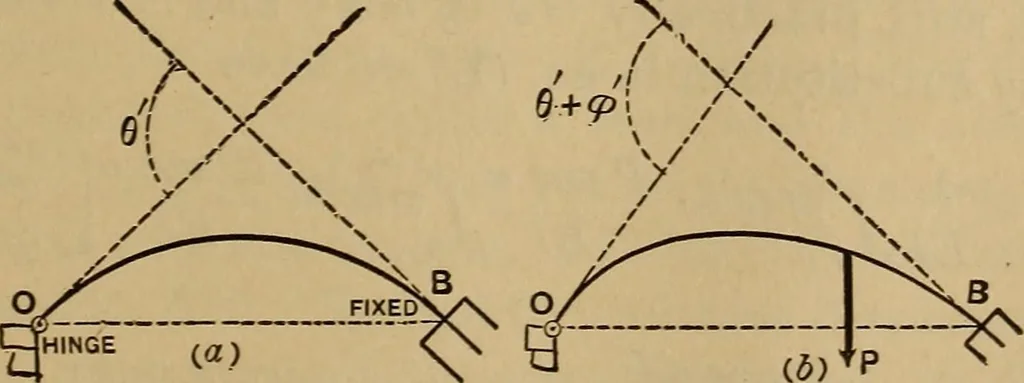

icular case) we know from § 295 eq. (6) that M=^~t and hence by substitution in (1) we have d(p MdsEI (2) [If the arch-rib in question has less than three hinges,the equal shortening of the fibres due to the thrust (ofthe block in last figure) pYF, will have an indirect effect onthe angle dw. This… … Fig. 403. 446 MECHANICS OF ENGINEERING. the other. When the rib is unstrained (as it is supposedto be, on the left, its own weight being neglected; it is notsupposed sprung into place, but is entirely without strain)then the angle between the end-tangents has some value d= J dd= the sum of the…
Mechanics, Applied · Engineering · Strength of materials
