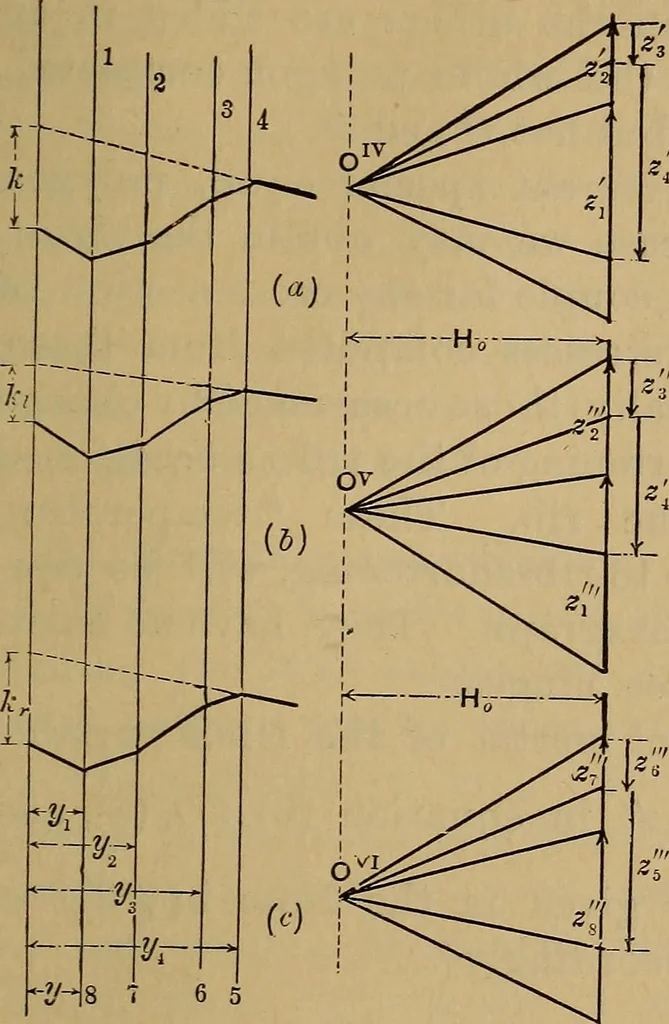

.] The points E and L in vm, vertically over Er andL in vm!, are now fixed; they are the intersections of thespecial polygon required, with vm. The ordinates between vmf and the trial equilibriumpolygon have been called z instead of z\ they are pro-portional to the respective 2s of the required… … Z\{yz) = l\(yz>) . (9) This may be done pre-cisely as for the rib withtwo hinges, but the nega-tive (s)s must be prop-erly considered (§ 375)See Fig. 431 for the de~tail. Negative 2s or sspoint upward. From Fig. 431a I\{yz)=HJc,\ from symmetry Z%Vz)=2H„k.From Fig. 4316 we have Fig. 431. and from…
