Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 57

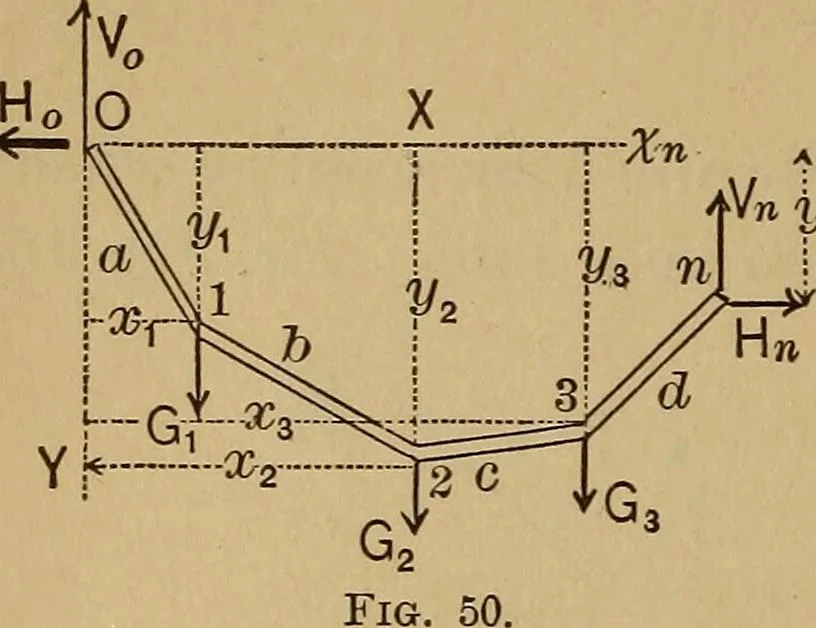

= 0,.-.P The stress on the support C will = 5P. 44 MECHANICS OF ENGINEERING. … 44. Weights Suspended by Fixed Knots.—Given all the geo-metrical elements in Fig. 50, andone weight, £?,; required the re-maining weights and the forces nyn & & H0, Vq, Hn and Vm at the pointsof support, that equilibrium mayobtain. H0 and V0 are the hori-zontal and vertical components ofthe…
Mechanics, Applied · Engineering · Strength of materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
