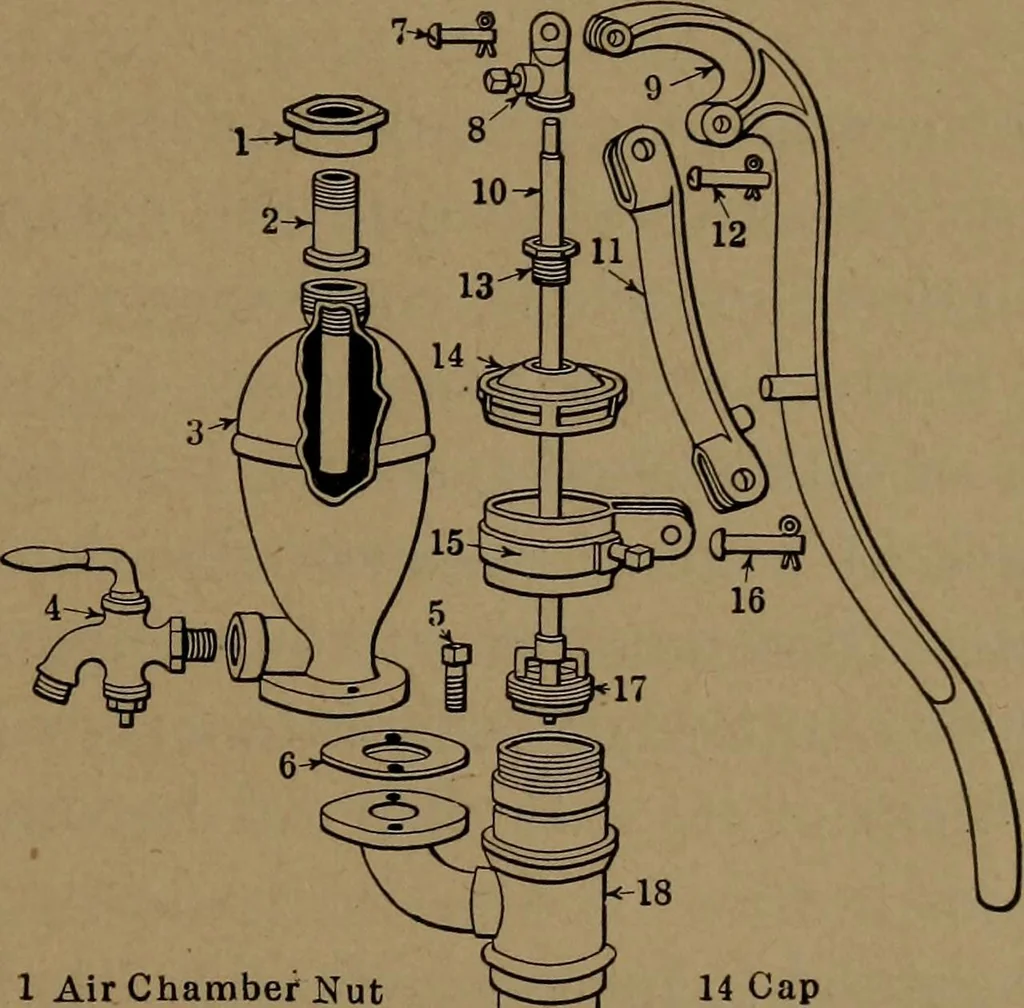

ays; but in case of emergencywater may be pumped by hand. A nearer view of the water lift is shown in Fig. 149. In the WATER SUPPLY 167 figure, the right-hand cyHnder with its valve V is the waterengine which furnishes the power for operating the pump, en-closed in the left-hand cylinder. The water… … 1 Air Chamber Nut 2 Brass Tube for AirChamber 3 Air Chamber 4 Brass Cock 5 Cap Screw 6 Leather Washer 7 Handle Pin 8 Pitman 9 Handle 10 Brass CoveredPiston Rod 11 Fulcrum 12 Fulcrum Pin 13 Brass Stu.ffijig ifut
