Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 24

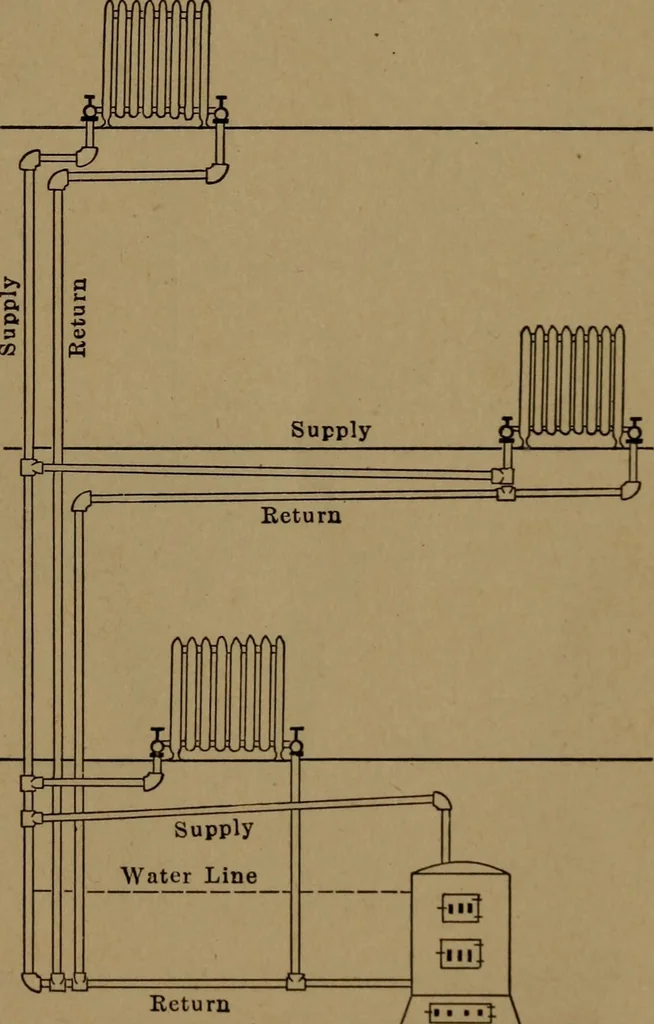

of separate-return system.It is exactly the same as Fig.6, except that each radiatorhas an independent returnpipe. Steam must alwaysenter the radiators at the valves A and leave at the valves B, This makes a positive cir-culation that renders each radiator independent of the others.There is no… … Fig. 7.- -Diagram of a separate returnsteam system. 14 MECHANICS OF THE HOUSEHOLD Of all the methods of steam heating where the water of con-densation is returned to the boiler by reason of gravity this isthe most satisfactory. This plant requires a larger amount ofpipe than the other systems…
Heating · Lighting · Plumbing
