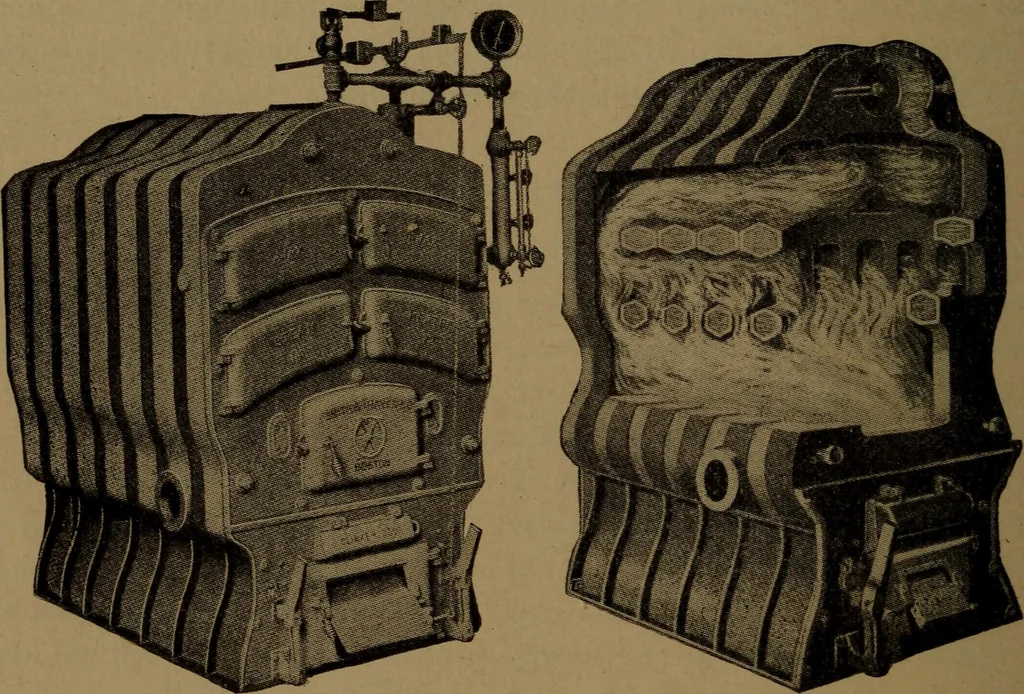

own in Fig. 18 is commonly used.As constructed by different manufacturers, the parts differ quitematerially but Fig. 18 shows all of the essential features andserves to illustrate the different working parts. The sejctionsinto which the boiler is divided are indicated on the left-handside of the… … Fig. 16. Fig. 17. Fig. 16.—Sectional cast-iron boiler for steam or hot-water heating.Fig. 17—Interior view of the boiler shown in Fig. 16. The drawing shows the boiler cut through the middle length-wise and exposes to view all of the essential features. The fire-box and the spaces occupied by the…
