Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 51

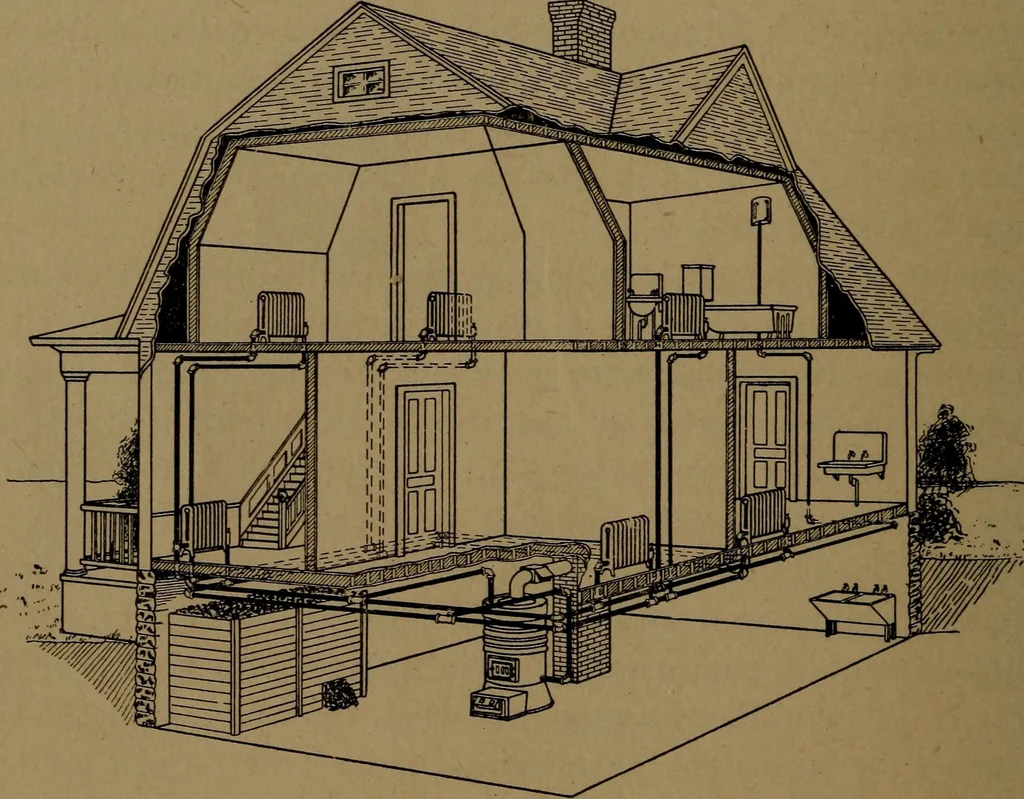

zed house but without any of the appliances used for auto-matic control of temperature. The regulation of the temperatureis made entirely by hand, in so governing the fire as to providethe required amount of heat. In the drawing the supply andreturn pipes may be traced to the radiators as in the… … Fig. 33.—The low-pressure hot-water heating system applied to a small dwelling. radiator with hot water, a pipe is taken from the main supply pipeand passing through the radiator it is brought back and connectedwith the return pipe which conducts the water back to the boiler.The expansion tank is…
Heating · Lighting · Plumbing
