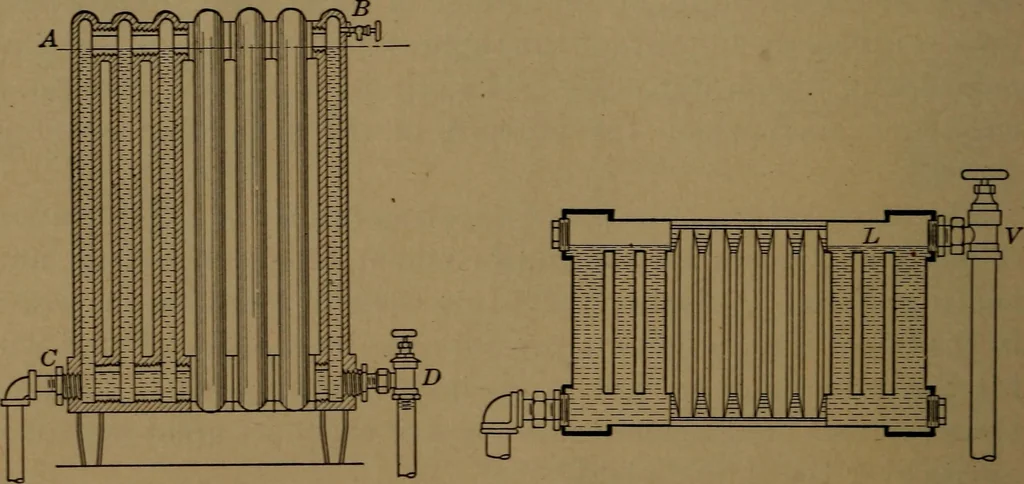

e to the top and displace the water. The water willcontinue to circulate and heat as much of the radiator as is incontact with the water, but that part not in contact will receive [ n ] ii 0114 Qi ] ] m Fig. 38. Fig. 39. Fig. 40. Figs. 38 to 40.—Various methods of attaching the supply and return… … Fig. 41.—The effect of accumu- Fig. 42.—With this method of connec- lation of air in a hot-water radiator tions, if the air collects sufficiently to forcewith bottom connections. the water down to the level L, circulation will stop. In Fig. 42 a much different condition exists, when air…
