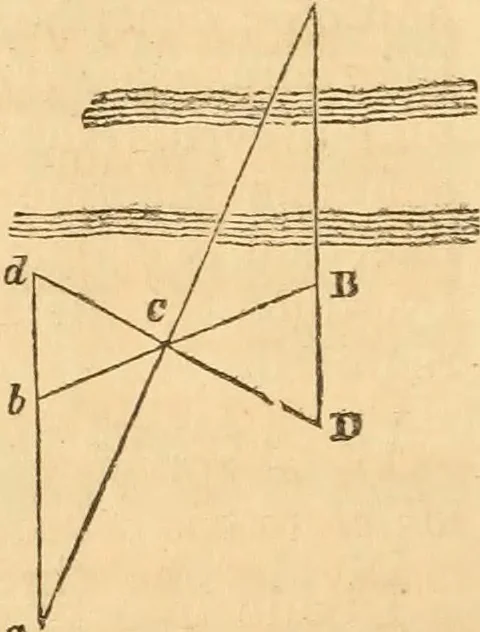

-a*-,.- -,-<r ^- 16 PRACTICAL GEOMETRY. … 19. To ascertain the distance, geometrically, of anyinaccessible object on an equal plane. Let it be required to find thedistance between A and B, Abeing inaccessible; produce theline in the direction of A B toany point, as D 5 draw the line Dd at any angle to the line A B \bisect the line D d,…
