The mechanic's text-book and engineer's practical guide; containing a concise treatise on the nature and application of mechanical forces; action of gravity; the elements of machinery; rules and tables for calculating the working effects of machinery; of the strength, resistance, and pressure of materials; with tables of the weight and cohesive strength of iron and other metals (1866)

Kelt, Thomas, Frost, John, 1800-1859 · Boston, Crosby & Ainsworth · leaf 26

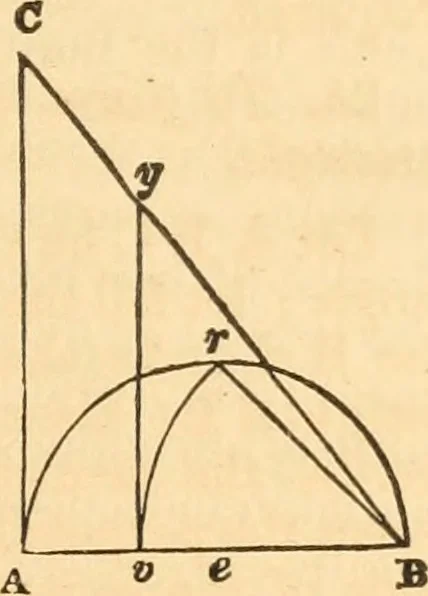

An illustration from The mechanic's text-book and engineer's practical guide; containing a concise treatise on the nature and application of mechanical forces; action of gravity; the elements of machinery; rules and tables for calculating the working effects of machinery; of the strength, resistance, and pressure of materials; with tables of the weight and cohesive strength of iron and other metals, 1866, leaf 26
rcle of greatest diameter in agiven triangle. Bisect the angles A and B, and draw the intersectinglines AD, B D, cuttingeach other in D ; then fromD as centre, with the dis-tance or radii D C, de-scribe the circle C e f, asrequired. 30. To form a rectangle of greatestsurface, in a given triangle.…
