Maurer, Edward R. (Edward Rose), b. 1869 · New York : John Wiley & sons, inc.; [etc., etc.] · leaf 234

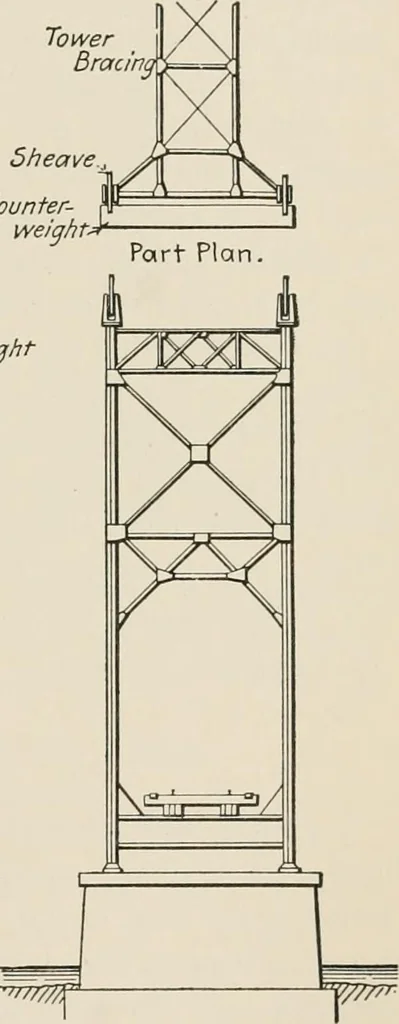

■54-SheaveCourt terweiqht 7777777rr777777mTmmr, Side Elevation.Fig. 351 … Cross Section.Fig. 352 In the following computation the weight of cables is neglected. Then thetension in each counterweight cable on the counterweight side of the sheavesis one-fourth of 34,000 pounds or 8500 pounds. When the span is beinglifted, the tension on the other or following side of the…
Mechanics
