Maurer, Edward R. (Edward Rose), b. 1869 · New York : John Wiley & sons, inc.; [etc., etc.] · leaf 347

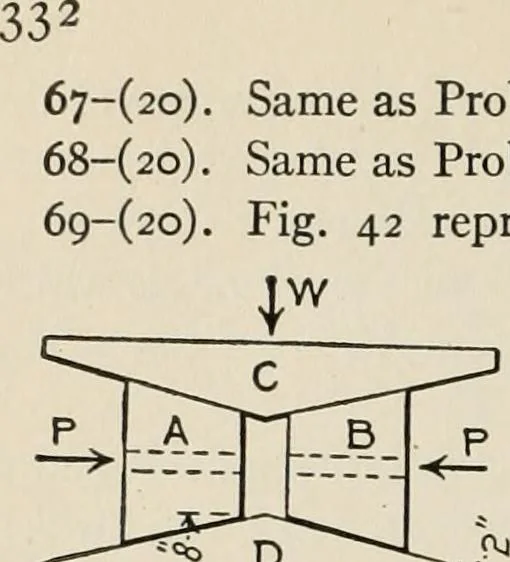

. For A and B, ft = I; forB and C, fi = f. How large must P be to cause shpping? 63~(i9)- -4 (Fig. 40) weighs 100 lbs.; the surfaces in contact are very rough;P = 50 lbs., and a = 20°. Determine the friction F and the normal pressure N. 64-(i9). A (Fig. 40) weighs 100 lbs.; a = 20°, and /x = 0.6.… … Same as Prob. 64 but refer to Fig. 41.Same as Prob. 65 but refer to Fig. 41, Fig. 42 represents a double-wedge device for raising and lowering aheavy load W* The device consists of wedges A and Band bearing blocks C and D; W = 200,000 lbs. Thecoefficient of friction is 0.5. How large are the…
Mechanics
