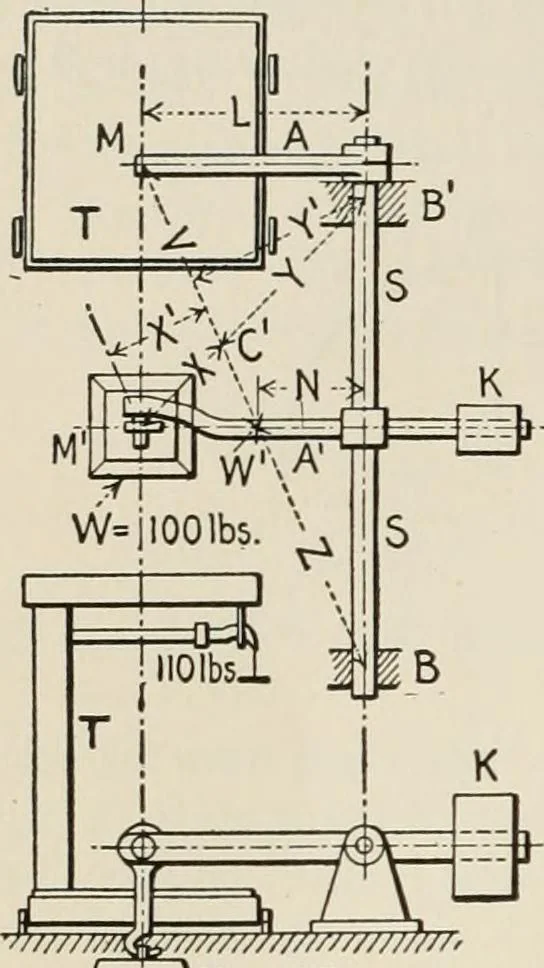

^ weight IF is placedon the fulcrum Mof the lever A, the whole mass will tend to rotate about a line passingthrough the points of support M and B, with a moment of W times the lever arm X. Theshaft 5 at the point B will be fetched forcibly up against the top of the box or bearing capof bearing B,… … yTy^WIOOlbs.Fig. 79 Now, it is evident that the resultant of these two forces is a downward vertical force C atthe point C equal to IF + {WX)/Y which load is distributed between the points of supportB and M inversely proportional to their respective distances from the point C Hence theload on the…
