Maurer, Edward R. (Edward Rose), b. 1869 · New York : John Wiley & sons, inc.; [etc., etc.] · leaf 376

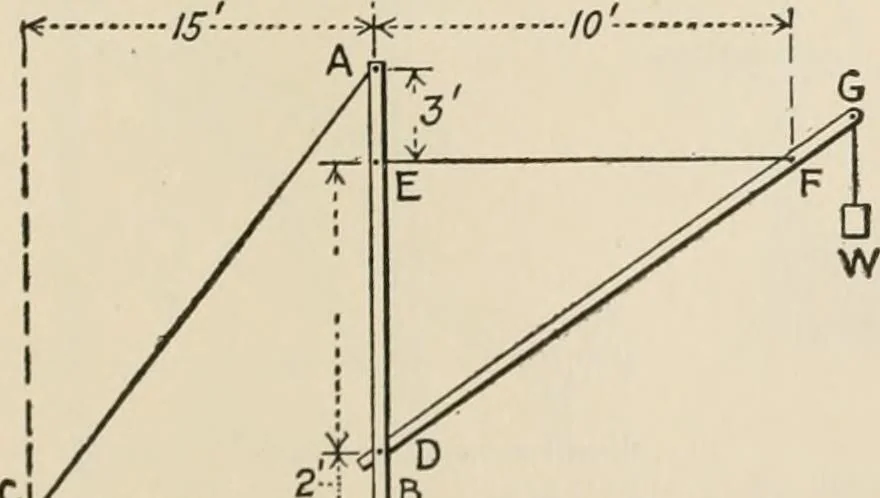

->i<-- --^-- —A<— -->! A.k--^— Fig. 133 Fig. 134 rests upon a smooth support at the left end. Each load Pi = 1000 lbs.; Pi = 2000lbs. Solve graphically for the stress in each member. 264-(i7). The crane represented in Fig. 135 is pinned at B and is held by theguy rope CA. The load W is… … Fig. 13s
Mechanics
