Metal-work; a handbook for teachers and students (1914)
Adam, Hugh M. [from old catalog], Evans, James Humphrey, [from old catalog] joint author · New York, Longmans, Green and co.; London, E. Arnold · leaf 331

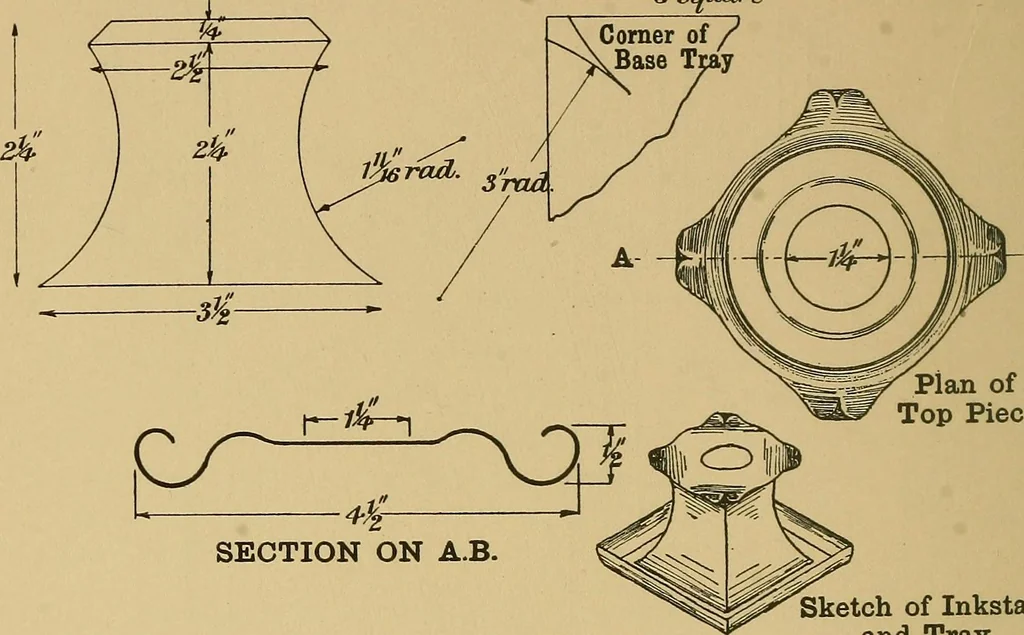

a quick returnmotion model. The drawings show the elevation and end viewof the finished object mounted on a base plate. You are required (1) to complete the essential details of move-ment so that the model will work; (2) to show your idea of finishon any one of the details; (3) to add any other… … Plan ofTop Piece. SECTION ON A.B Sketch of Inkstandand Tray, Fig. 4. DRAWING- (Three Hours). Hand Drilling Machine. Draw a section of all the parts of the drilling machinebetween the breast-piece P and the end AB of the frame, thesection to be taken at the centre line CD. Do not draw thepiece…
Metal-work
