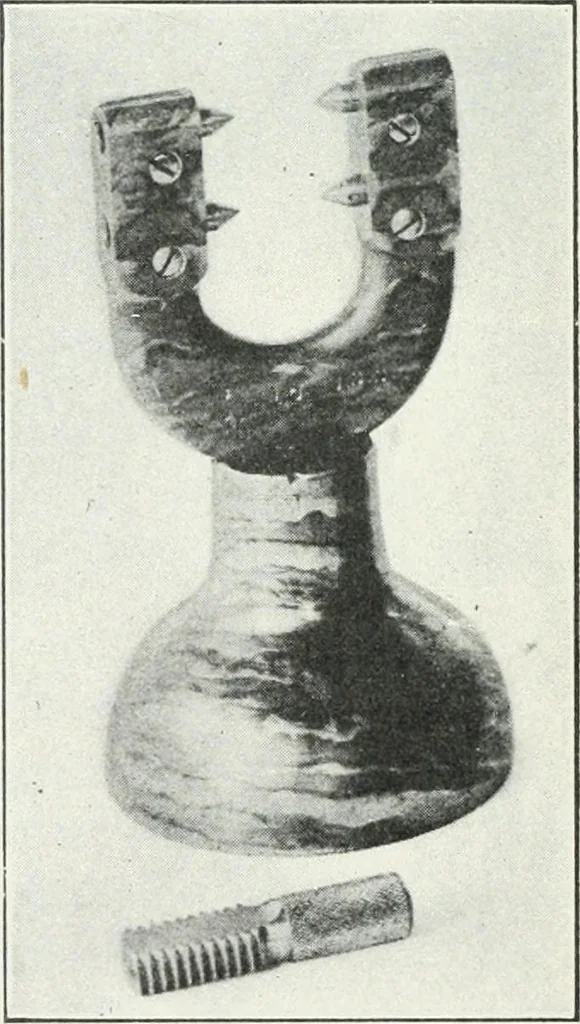

aces atwhich the fit should be made, andthepitch. A very common methodof measuring the diameter is bythe Brown and Sharpe screw-thread micrometer caliper shownin Fig. no. The measuring fin-gers of this instrument are groundto the angle of the thread, the Vsbeing truncated to insure they donot reach… … Fig. US- Limit gage for screw-threads. GAGES 129 and the measurement is made by means of the usual mi-crometer over the outsides of the wires. Complete tablesof readings for standard threads have been worked out for thissystem/ which is admirably adapted to the gaging of largescrews and worms, an…
