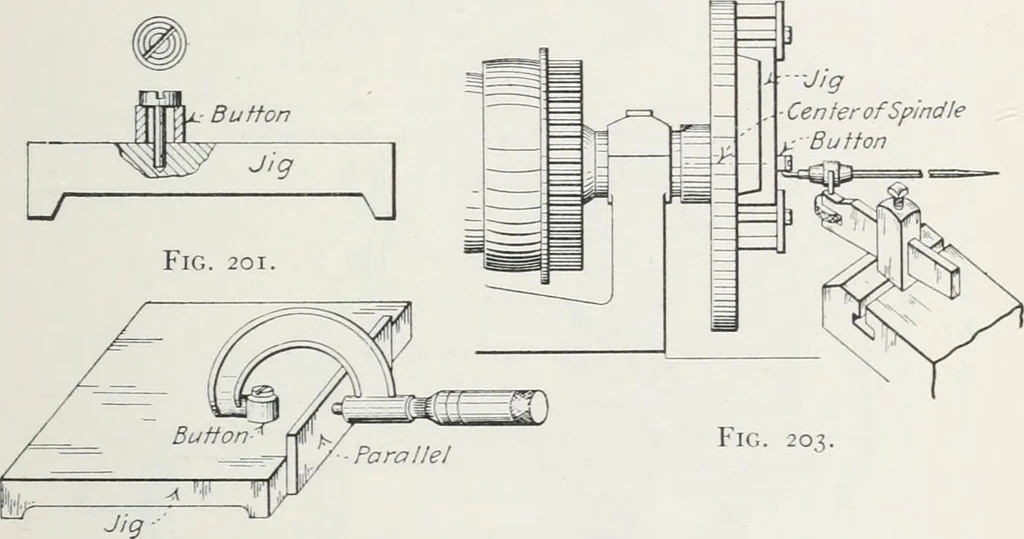

ations where the jig holes are required.The buttons are small cylinders of hardened steel of exactlythe same diameter with holes through them endwise and withthem go small cap screws of a diameter somewhat less thanthat of the holes through the buttons. The jig having been planed, the tool maker… … Fig. 203. Fig. 202. The button method of spacing holes. Fig. 201 and, using a parallel strip and micrometer as in Fig. 202,they are adjusted to the exact position desired. The jig isthen strapped to a lathe face plate as in Fig. 203 and carefullypositioned until the tool makers indicator stands…
