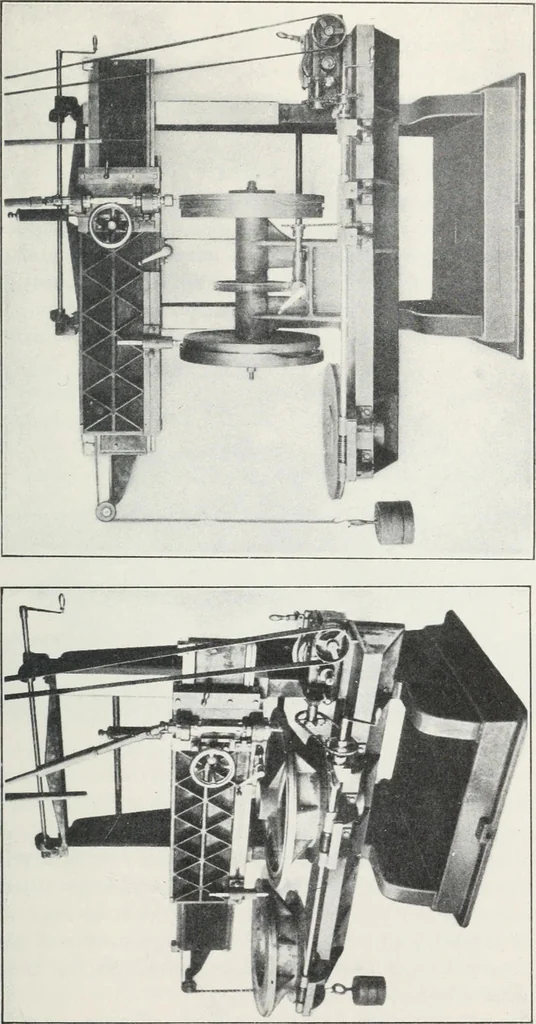

in accordancewith its own profile, and this movement being transmitted tothe milling cutter, the latter reproduces in the cam blank theoutline of the former. Fig. 246 shows the machine as arranged for the productionof drum cams. The cam-holding turntable of the previousillustration has been removed… … 246 METHODS OF MACHINE SHOP WORK cam fixture. As before, the former is at the left and the camblank at the right. The two being mounted on the samearbor, the action as this arbor revolves is to reproduce the out-line of the former in the cam blank essentially as in the previousillustration. THE…
