The microscope; an introduction to microscopic methods and to histology (1901)
Gage, Simon Henry, 1851-1944 · Ithaca, N.Y. Comstock publishing company · leaf 102

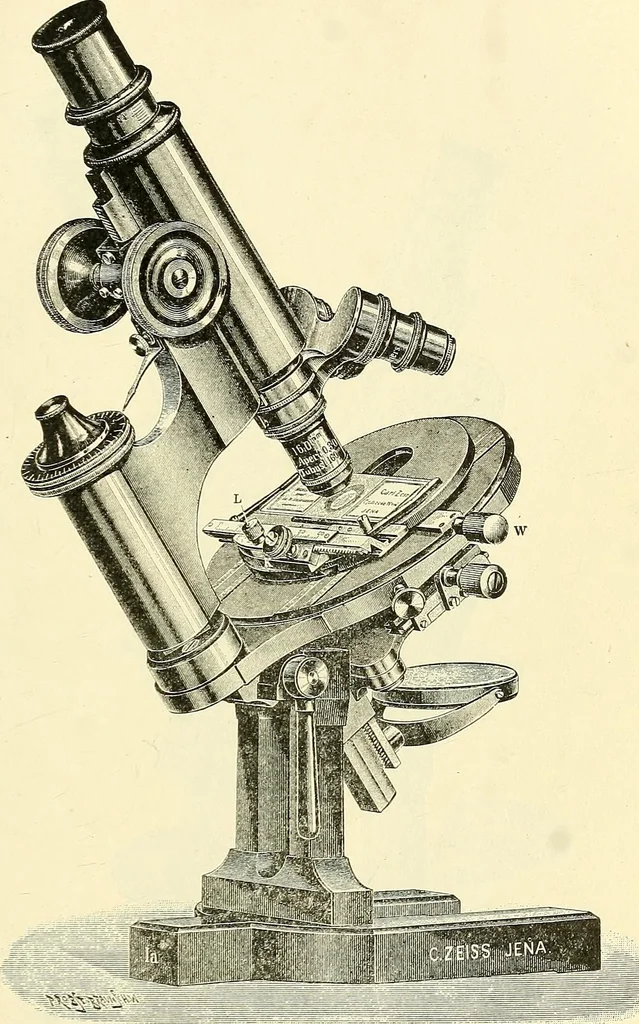

e held their position with theforemost English microscopists for the last 4.0 years. [See Carpenter-Dallinger,p. 172. ) Microscopes with tripod base something after this pattern are now beingmade on the Continent. Attention is called to the sub-stage for the condenser. It possesses centeringscrews… … Fig. 86. Zeiss Micro scop e~i& with Mechanical Stage. This figure from ZeissCatalog No. jo, represents the Continental Model of Microscope in its most perfectform. K. Milled head of the screw for the lateral movements of the stage. L. Screw for fixing the laterally moving mechanism of the…
