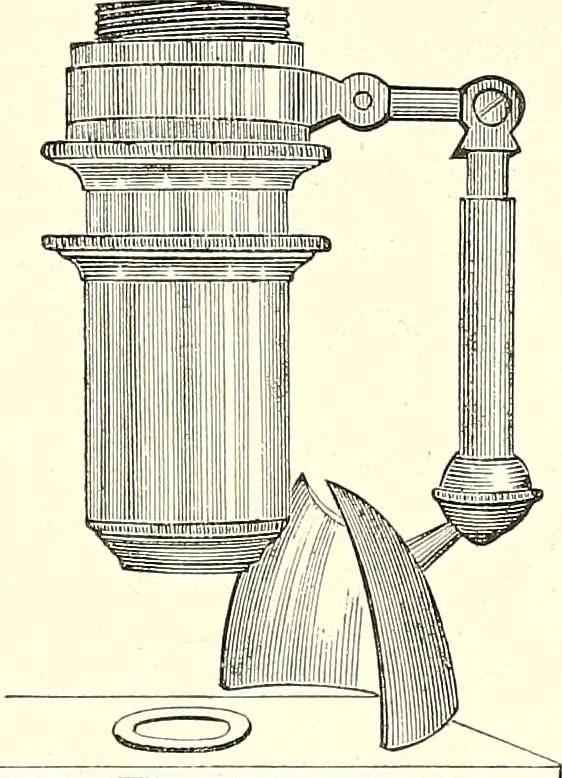

centrate the light from such asource a condensing lens is used, either attached to themicroscope or mounted on a separate stand. Sometimesa hulVs-eye condenser is used for more etiective illumination(Fig. 15). This is a large plano-convex lens of short focus,mounted on a stand. For such a lens the… … Parabolic Sppcuhim. ing rays of a lamp parallel, the plane side should be nextthe lamp, and rather close to it. The use of this con-denser will also commend itself, when used as last referredto, in microscopic dissection. It will throw a bright lightfrom the lamp directly on the trough,…
