Military aeroplanes, simplified, enlarged; an explanatory consideration of their characteristics, performances, construction, maintenance, and operation, specifically arranged for the use of aviators and students (1918)
Loening, Grover Cleveland, 1888- · [Boston, W. S. Best printing company] · leaf 168

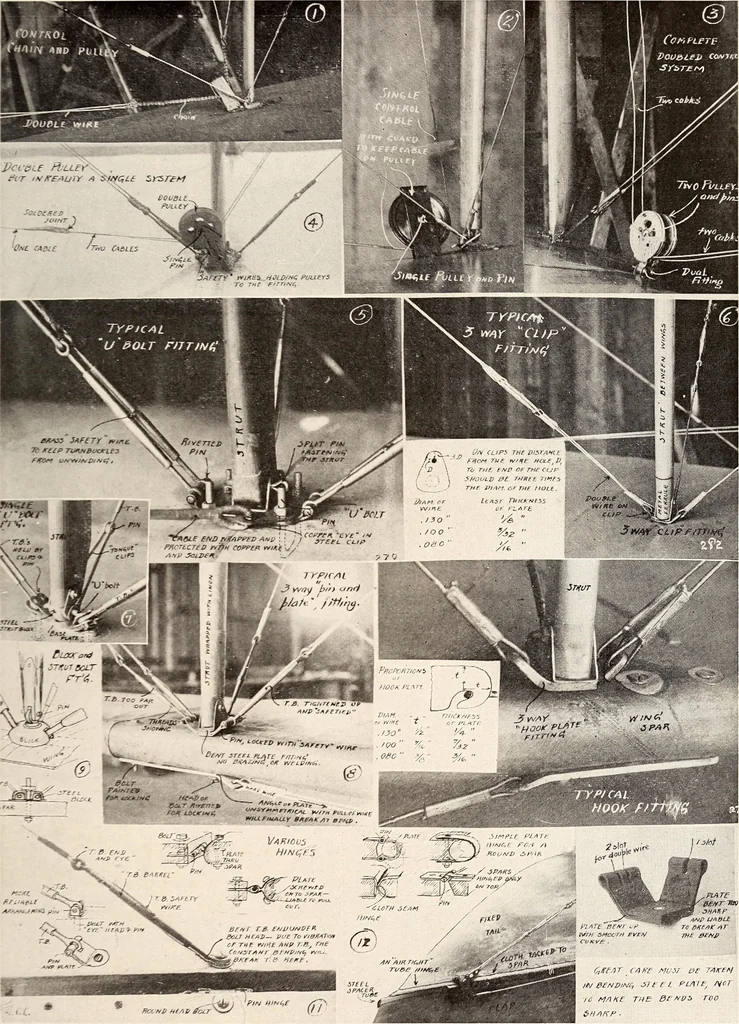

1. Control with cables and pulleys on ball bearings. —2. Same with friction leads.—3. Detail of rubber shock absorber bridge. —4. Steel Spring chassis, with centralskid. —5. Softer rubber chassis with no skid. Both of them are typical chassis forexactly the same work. —6. Fuselage details. —7.… … .......,.^.;^- fi 1, 2, 3, 4. Various single and double pulley arrangements for control cables.—5. ^ The Curtiss double U bolt fitting. —6. The Burgess clip fitting. —7. TheCurtiss single U bolt fitting. —8. Signal Corps, pin and plate fitting. —9. The steelblock and eye head strut bolt fitting…
