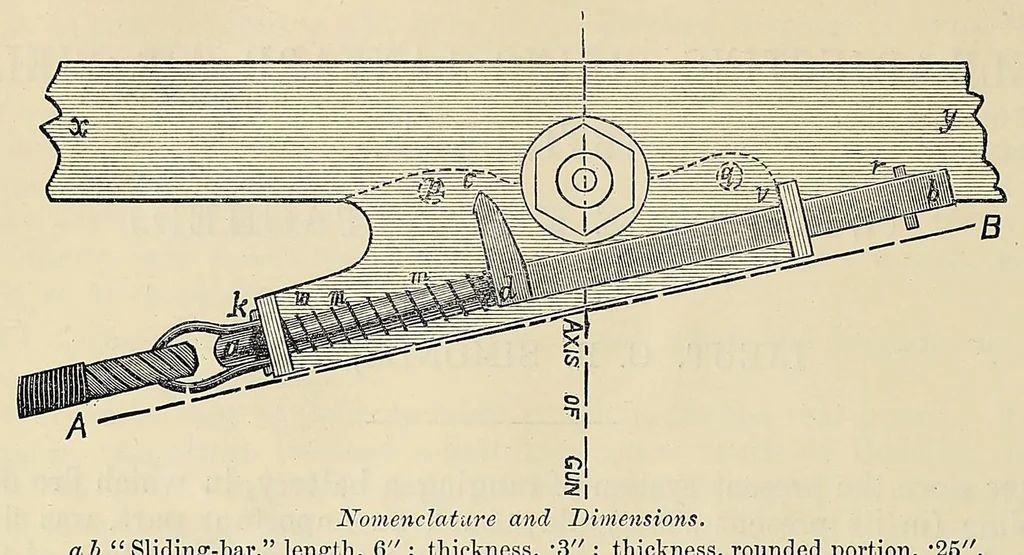

530 SELF-ADJUSTING FILING LANYARD FOR FIELD ARTILLERY. It consists of a sliding bar a b (See diagrams) fitted with a cross-piece Plan (Showing- Position of Yent). Scale … ab “ Sliding-bar,” length, 6" ; thickness, ’3" ; thickness, rounded portion, ’25". c d Cross-piece, length, •9" ; thickness, ’3". x y Fixing band (wrought-iron), breadth, PI"; thickness, ’1". w v Guide piece (wrought iron), thickness, l‘7o". N.B. — The dotted lines jp q show position of rivets…
