Model engine construction, with practical instructions to artificers and amateurs (1894)
Alexander, John Henry. [from old catalog] · London, New York, Whittaker · leaf 213

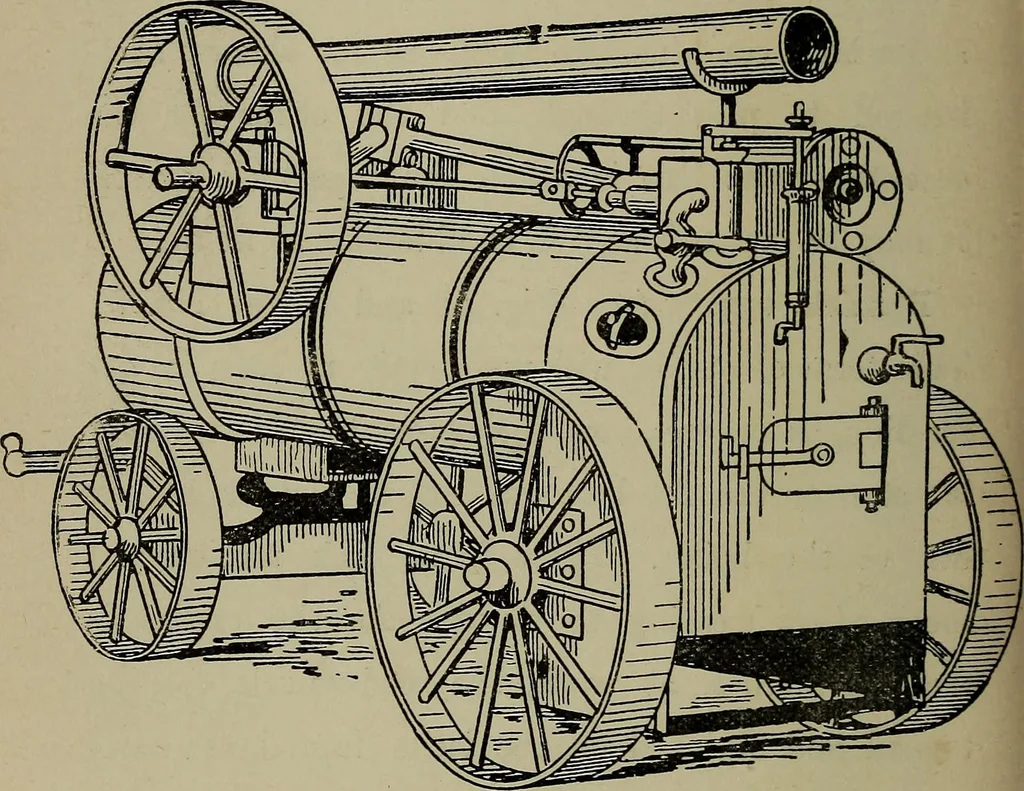

e frontwheels are attached to a pivoted frame below thesmoke-box, as in the traction engine. The cylinderis set near the fire-box end of the boiler, and thefly-wheel at the smoke-box end. The brass bearingsfor the crank-shaft are bolted by their feet to stiff 190 MODEL ENGINE CONSTRUCTION.… … Fig. 52.—Perspective view of Portable Engine. and connects with a small spring-balance pivoted toa bracket, which is soldered or screwed to the backof the boiler. A cock inserted between the steam-pipe and cylinder does duty as a regulator. The PORTABLE ENGINE. 191 mouth of the steam-pipe inside…
