Model engine construction, with practical instructions to artificers and amateurs (1894)
Alexander, John Henry. [from old catalog] · London, New York, Whittaker · leaf 218

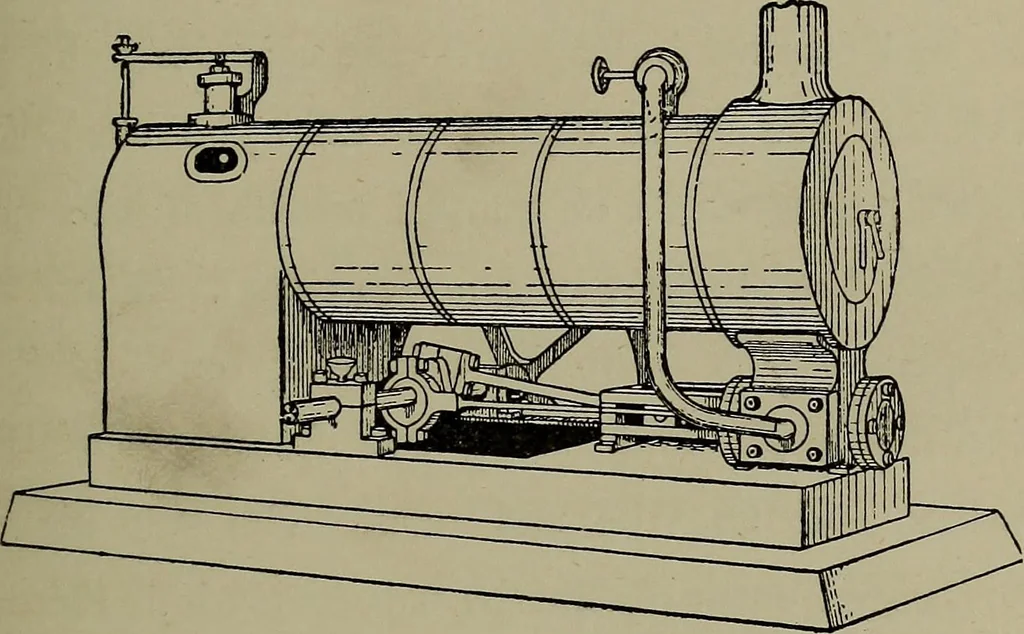

oke-box to rest upon. The bed-plate is a brass casting, or is made out of No. 20sheet brass, and riveted together. In real engines,the cylinder, steam-chest, stop-valve chamber, andsaddle-plate are combined in one casting. As this SEMI-POBTABLE ENGINE. 195 would involve special patterns, and be… … Perspective view of Semi portable EngineFig. 53. inside the boiler (see Sheet No. 10) is bent at rightangles, its mouth being plugged, and a number ofholes drilled in the upper surface for steam to enter,and in this way dry steam is got, instead of using adome. The saddle-plate is a brass casting,…
