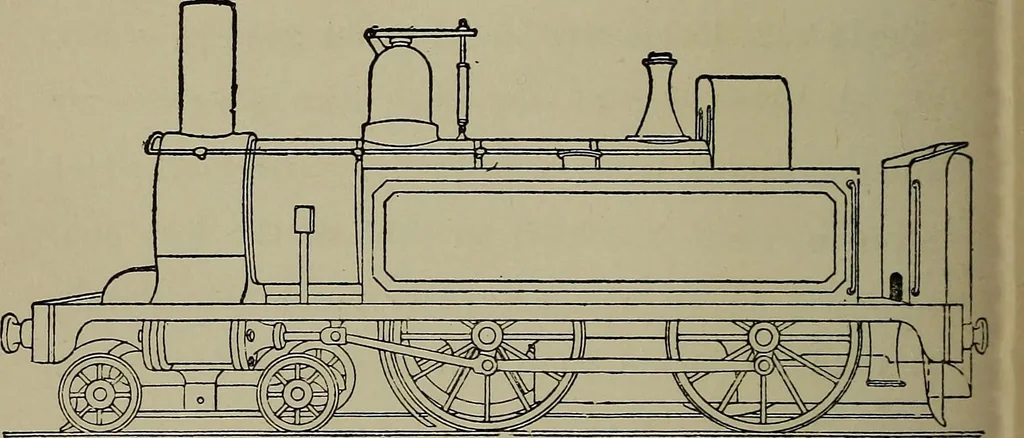

ing out the coals in the centre. Thedriving-wheels are concealed from view above theside frames by the side tanks, which are only 232 MODEL ENGINE CONSTRUCTION. imitations and not real tanks for holding water:both are made of tin. Each consists of an outerplate, which by means of angles is bolted… … Fig. 54. the hind end up to the fire-box on the foot-plateat both sides. The sides of the cab are solderedto the top of the tanks, fitting over the saddle-plate in front. The lamp is made of tin, and this slides along agroove underneath the coal-bunker and foot-plate,between the wheel frames; the…
