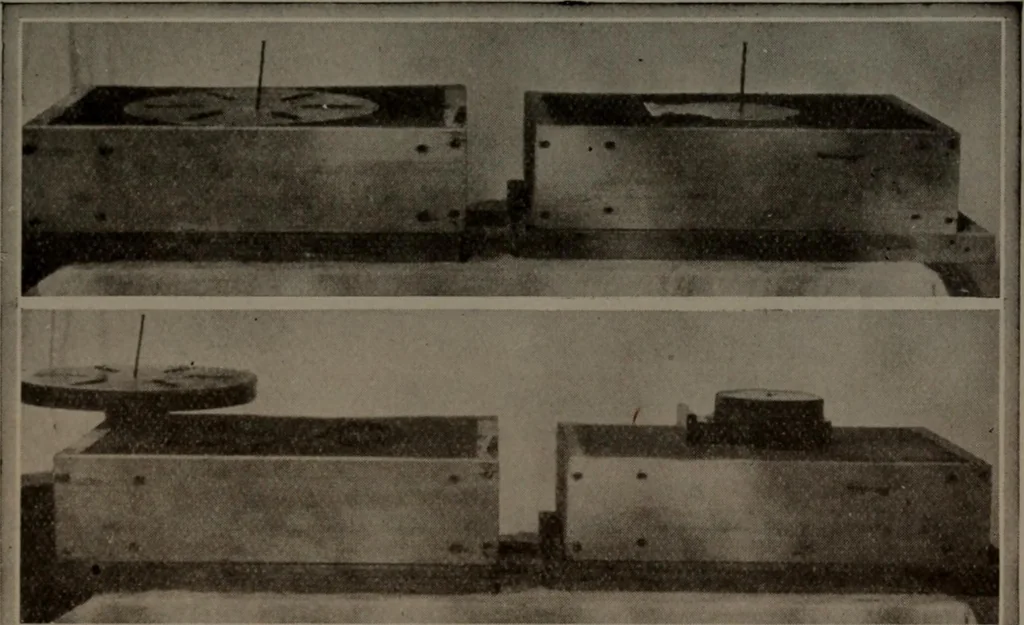

e con-sidered a duplicate of the **bottom board, is also pro-vided. In the photographs the **flask is represented bytwo wooden frames resting upon a bottom board. Aregular flask, however, would be larger than this andof more complicated construction, being provided withguide pins between cope and… … Fig. 64—(Above). Pattern exposed and piece moulded in placeFig. 65—(Below). Pattern withdrawn and two-piece pattern held together with dowel pins called ^^cheek pieces are sometimesintroduced betweencope and drag for producing complicated castings and anumber of pieces are usually moulded in one…
