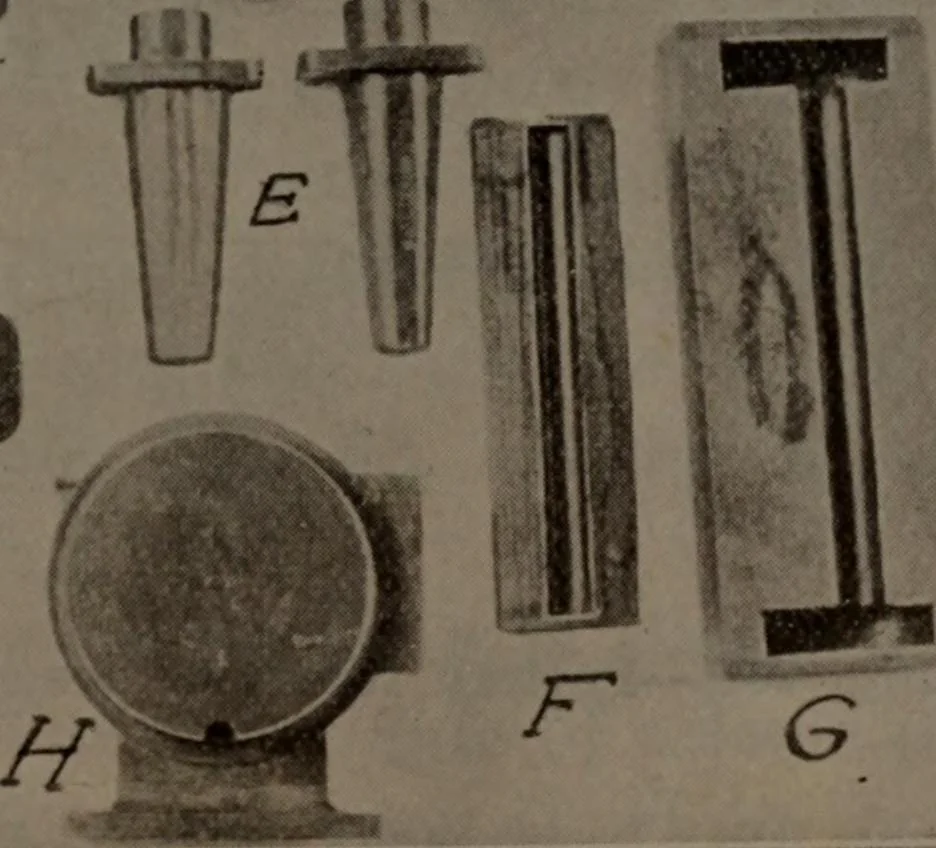

\ Fig. 69—A few parted patterns rect inclination. Imagine the pattern to be placed on themoulding board as in Fig. 62; then the direction of draw-ing, in the present position, would be downward; there-fore, all outer sides of the pattern should slope upwardand intvard and the inner sides, as the…
