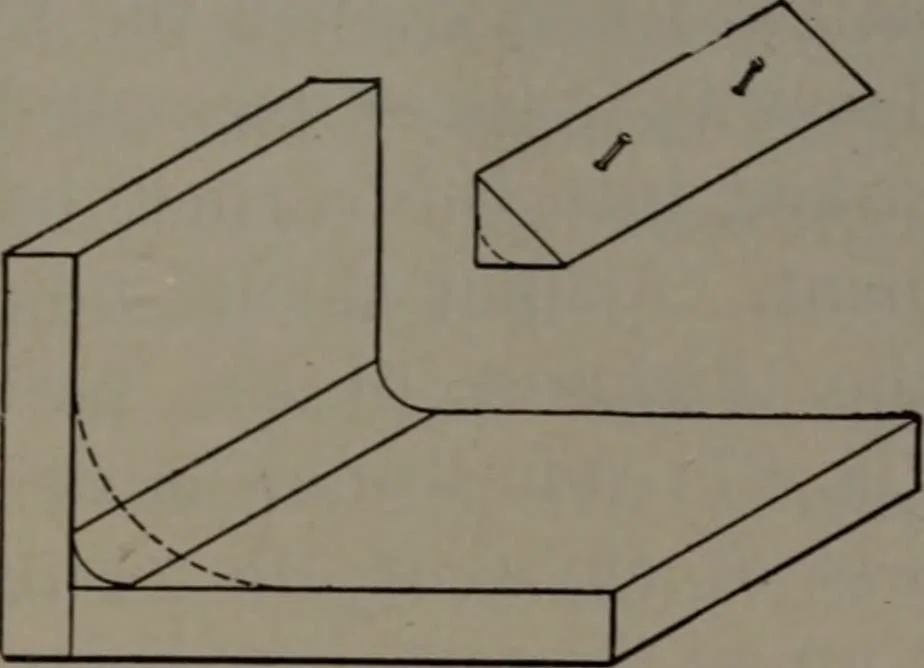

core print pro-jections never appear on the casting; their function isonly to form- a support for the core in the mold. Space will not permit a further discussion of coresand core boxes, for they occur in an endless variety, andevery one would require a special description, but theforegoing should… … Fig. 87—The dotted lines indicate a fillet with too great a radius inproportion to the thickness of the pattern A sharp corner should never be made on a pattern,whether it be curved or straight, but should be roundedoff; and internal corners should be filled in by a curvedportion called a ^^fillet.…
