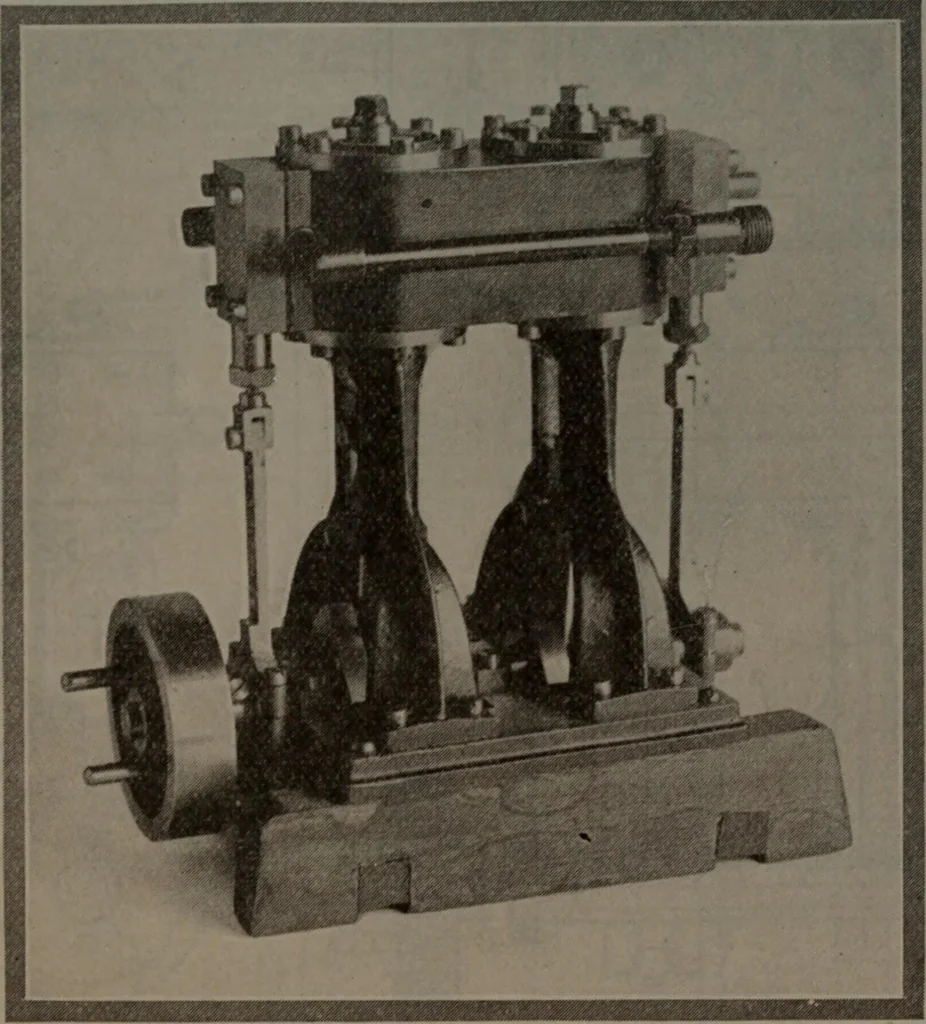

lathe. The illustrations cover every detail of the engine,the working drawing being supplemented with photo-graphs of the part of the machine ready for assembly. 152 A Model Twin-Cylinder Marine Engine 153 It is assumed that the worker who attempts the con-struction will be sufficiently familiar… … Fig. 105—The twin-cylinder marine engine as it looks when finished The dividing line is, of course, that through the stiffen-ing web. A core is scarcely justified in the tunnel for thecross-head. The extra weight of metal, particularly ifcast iron is used throughout, is not sufficient to warrantthe…
