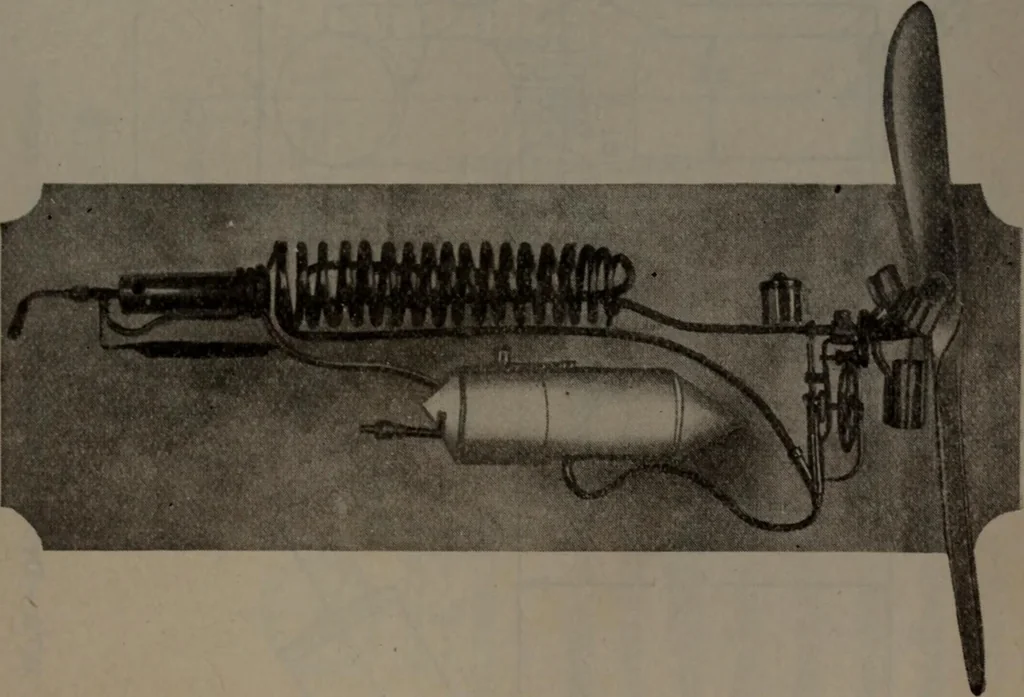

m-perature at which the engine operates. The propeller Steam Plant for Small Model Airplanes 189 mounting consists simply of a star-shaped piece of%4-inch steel brazed to the cylinders, and the propelleris held to this by means of a screw and nut. Three driv-ing pins are set in the plate, which… … Fig. 126—The complete power plant cylinder types, because of the absence of a long multi-throw crankshaft with its correspondingly extensivecrankcase and bearings. The flash boiler was made from 8 feet of %-inch insidediameter copper tubing wound up on a tapered mandrel.The over-all length is 7%…
