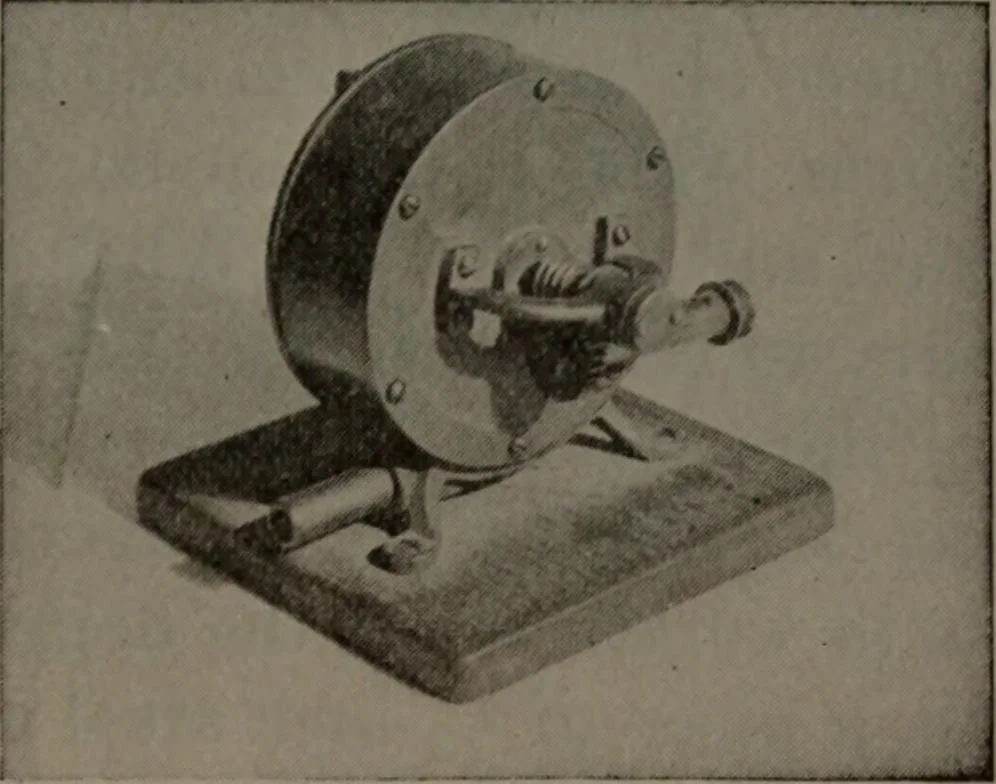

ould be in perfect balance. The design requires fortyvanes or buckets arranged around the circumference ofthe wheel. Fig. 140 show^s in detail the construction of thewheel. This wheel is made with a solid web betw^een thehub and rim, instead of being spoked; the reason for thisbeing that the entire… … Fig. 135—The turbine, showing the exhaust port able to drill and ream the hub of the casting % of aninch and use an arbor of that size while machining it. After the wheel is trued up all over and the rimformed to fit the buckets, a bushing, % inch outside di-ameter and with a i/4-inch hole through…
