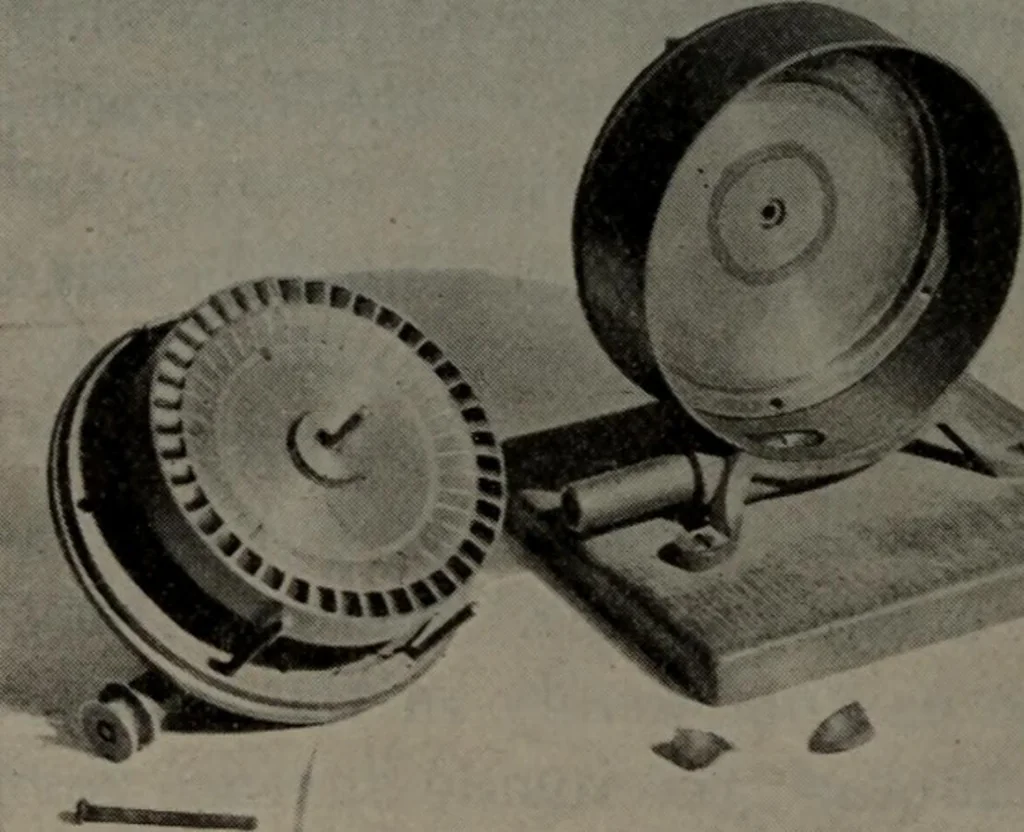

ubing, as it will add to the appearance ofthe finished model. AVhen cutting out the oil reservoirs, turn out thegroove for the brass washer shown in Fig. 140. Thiswasher is to be soldered in place, but this must not bedone until the oiling ring for the bearing, L, Fig. 139,has been placed in the… … i rig. 137—The turbine taken apart, showing the construction of the rotor extra part of the chuck piece is cut aAvay and the endsquared up. Two holes are to be drilled into the oilreservoir, one above, for the purpose of supplying oil,and the one below to be used to drain the reservoir.They should…
