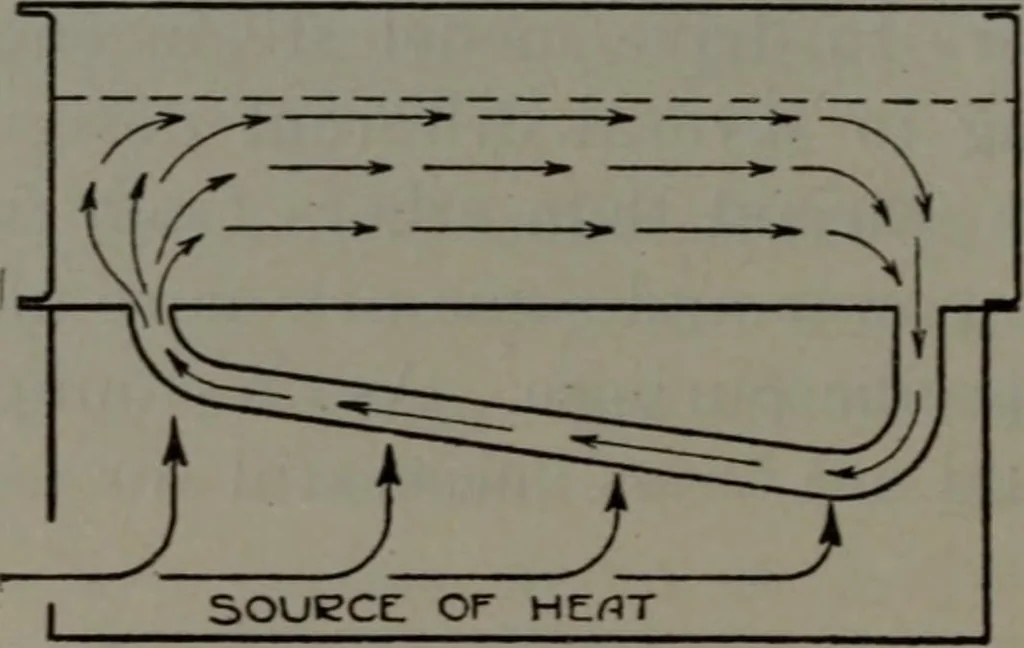

ds in regard to the efficiency of boilers 215 216 Model Engineering in general. Boiler efficiency depends upon the evap-orative power and this, in turn, depends upon severalthings, such as the heating surface, the source of heatand the design of the boiler. The evaporative power of^Tij boiler,… … Fig. 142B—Showing the path of convection currents in a water-tube boiler the size of the engine it is capable of driving. Model potboilers (about 7 inches long by 3 inches in diameter)cannot evaporate more than % to % of a cubic inch ofwater per minute. This figures out about 1 cubic inchof water…
