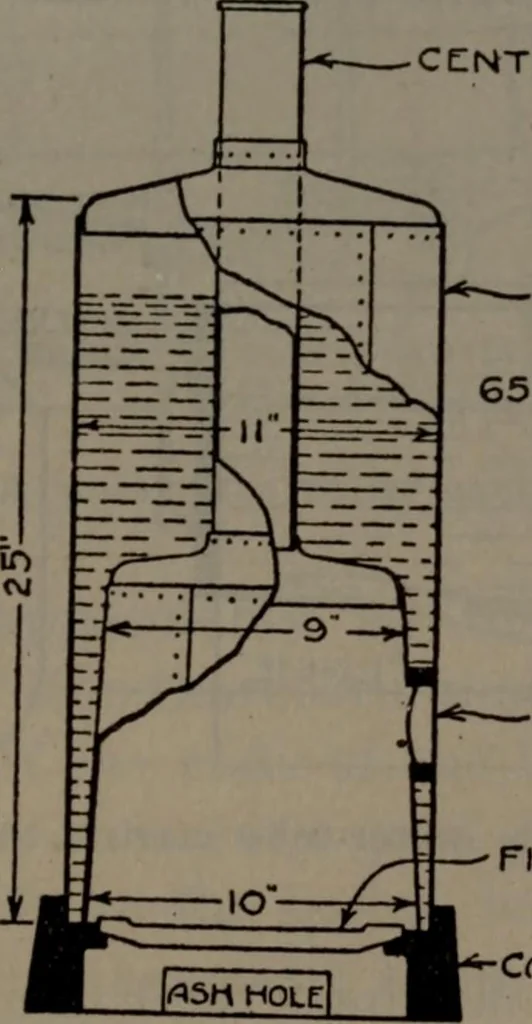

s 217 The motion and rapidity of these convection currentsis a large factor when the efficiency of a boiler is con-sidered. The faster these currents move, the better thecirculation of the water will be, and this is to be desired.The boiler shown in Fig. 142B is the type known asthe water-tube… … ccNTtPt flue: SOLID DC/qWN COPPEEjl65 LBS. PREISSURE. DOOR. fire: B<qR3casT IRON base:Fig. 143—A single-flue boiler made of drawn copper tube the water. For this reason, boilers embodying this prin-ciple have a much greater efficiency and evaporate powerthan those of ordinary design. A boiler…
