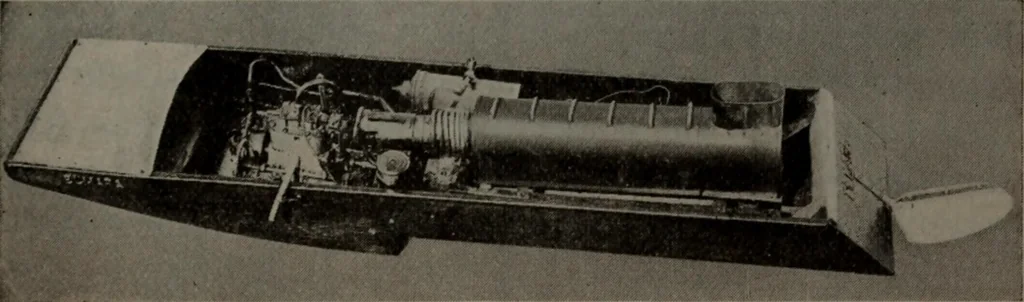

The dimensions of the hull are as follows: Length39.37 inches, beam lYg inches, step 1V4 inches high, sidesforward of the step 4% inches high, sides directly backof the step, 3 inches high. The distance from the bow 242 A Record-Breaking Model Hydroplane 243 to the step is ITVl inches. The weight… … Fig. 160—Showing the power plant of Elmara unaffected by moisture. The pattern of the sides of theboat are first cut out of paper and this paper is pastedon a piece of dressed mahogany % inch thick. The ma-hogany is then cut into shape. The bow piece is cut outof solid mahogany and shaped as shown…
