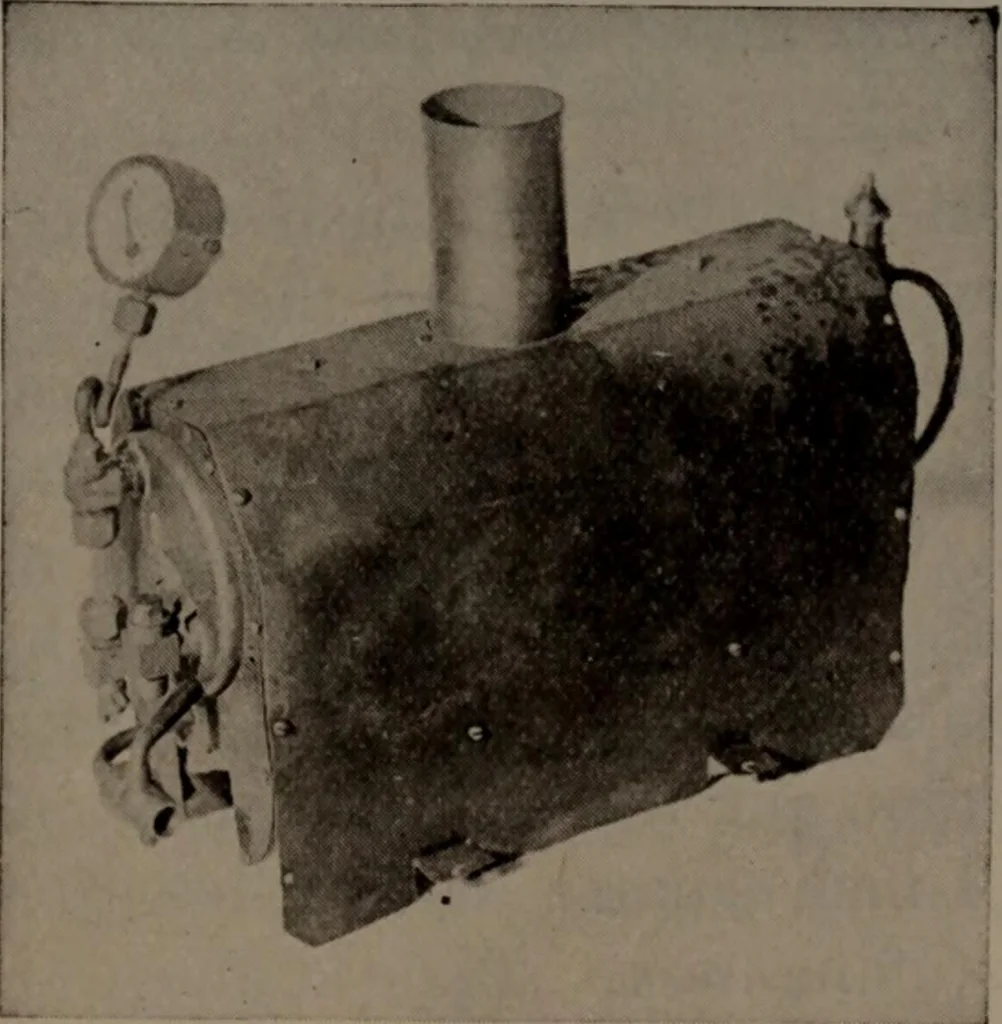

Fig. 180—How the hull of the boat is assembled of l^ inch oak and beveled to fit into the sides. In theactual building, the sides are secured to the bow pieceby brass screws (No. 1, i^-inch Avood screws) and thensprung out and the molds fitted; the transom being … Fig. 181—The Scott semi-flash boiler used on the Experiment* finally fixed in place. This is fastened by angle pieces ofsheet aluminum bent to fit in the angle between the sidesand the stern pieces. The angle pieces are first screwedto the side planks I/4 ii^ch forward of the aft edge of thesides,…
