Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 279

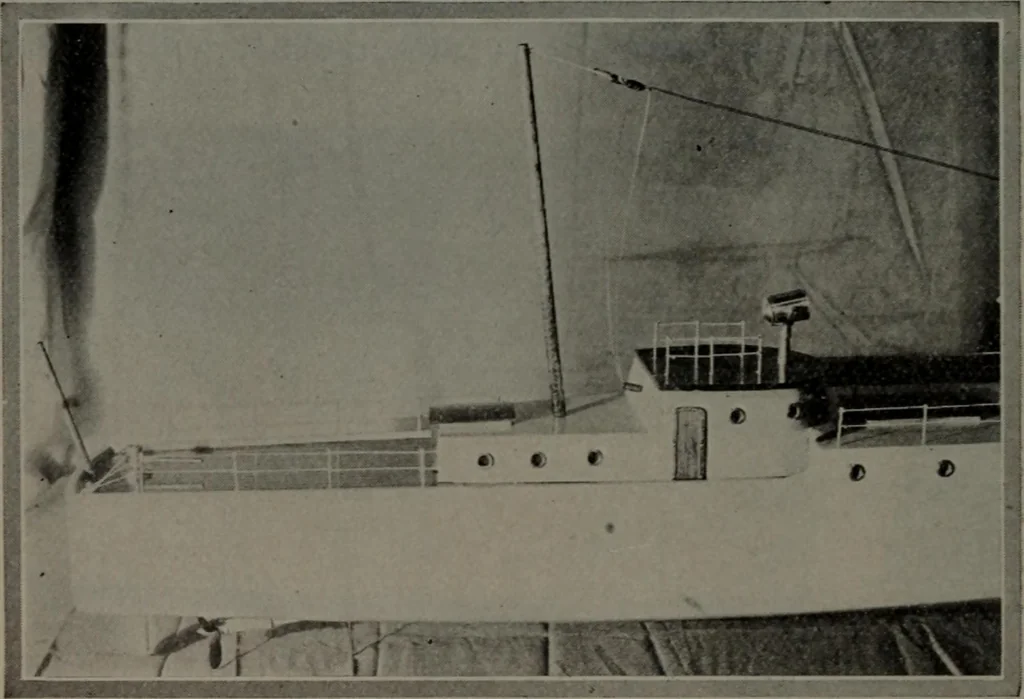

s drilled and an escutcheon pin insertednear the end. This pin is then headed over to draw upthe halves of the split rod in order that the job may be 276 Model Engineering neatly soldered. After this important operation has beenperformed, the head of the rivet may be ground or filedoff and the job… … Fig. 188—A view of the cabin on the chaser as shown in the illustrations. Xo particular provisionhas been made in our model to hold the tiller in anydesired position. This might readily have been done byforming a segment of a circle of brass sheeting withdepressions at the desired points to engage…
