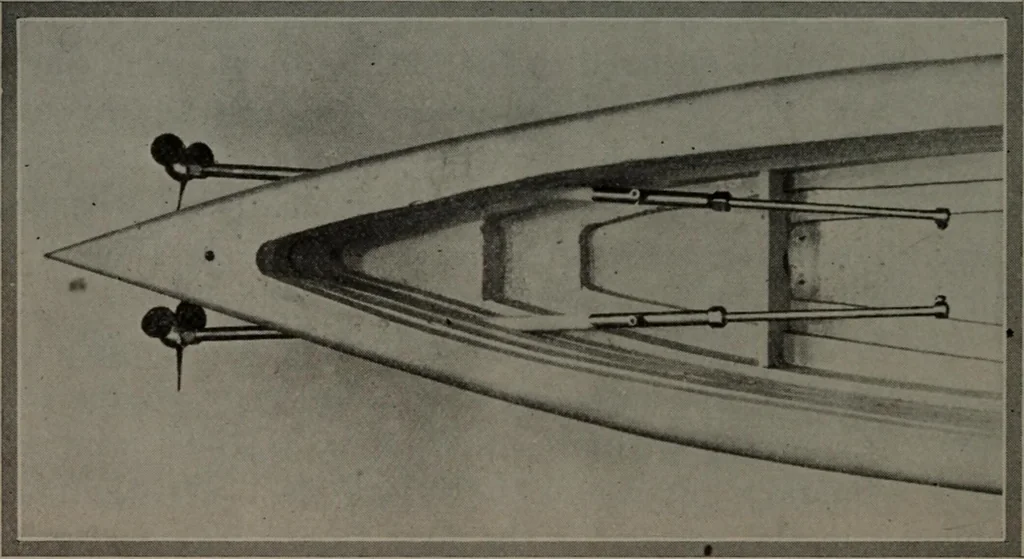

int over the interior of the hull 292 Model Engineering serves the purpose without the need for a very complexpiece of sheet metal work such as the tank would rep-resent. The tanks are completed through the addition of adecking of %-inch wood thoroughly coated with the paintor cement described… … Fig. 204—^The stem of the hull, showing how the propeller shafts pass through through the hull with the tanks completed. The wateris kept from surging back and forth by means of bulk-heads which divide the tanks into compartments repre-sented by W in the drawing. These bulkheads are per-forated so…
