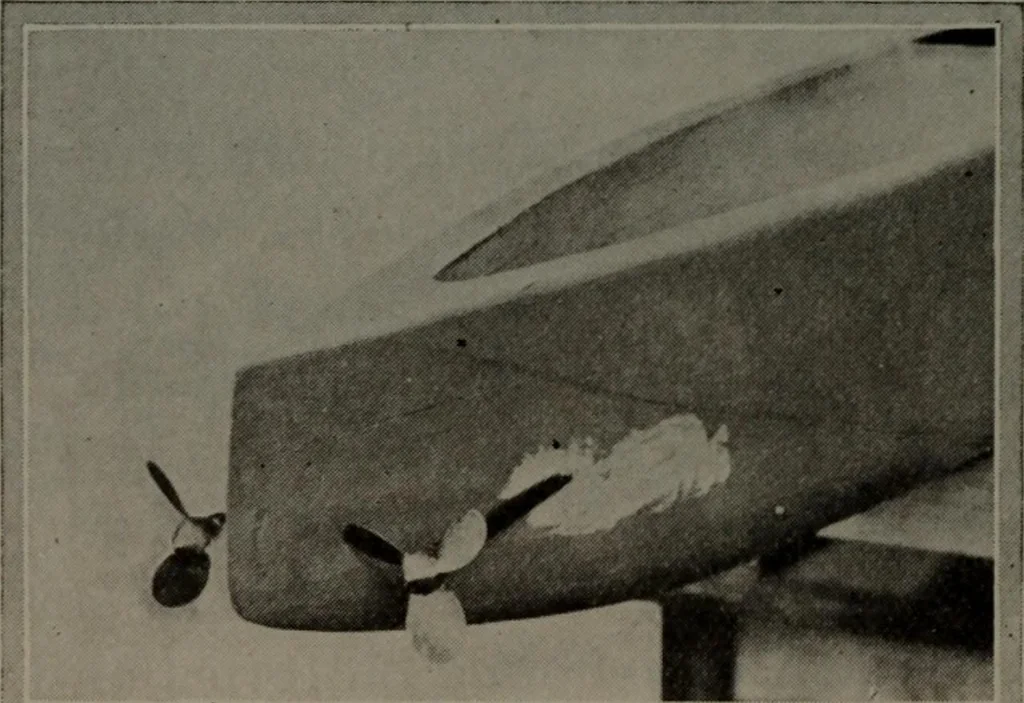

dded solely to permit the 294 Model Engineering motor to rim at relatively high speed with moderate pro-peller speed. The arrangement of the gears is such thata speed reduction of 2 to 1 is obtained with the shaftsfor the propellers running in opposite directions. This,of course, necessitates the… … Fig. 205—The stem of the hull, showing propellers in place Fig. 202, should make clear the entire scheme of thetransmission. The reader will note that a 48-tooth brass gear issecured to the motor shaft. This is a stock 1-inch gear of48 pitch. Meshed with this gear is a 96-tooth gear,…
