Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 301

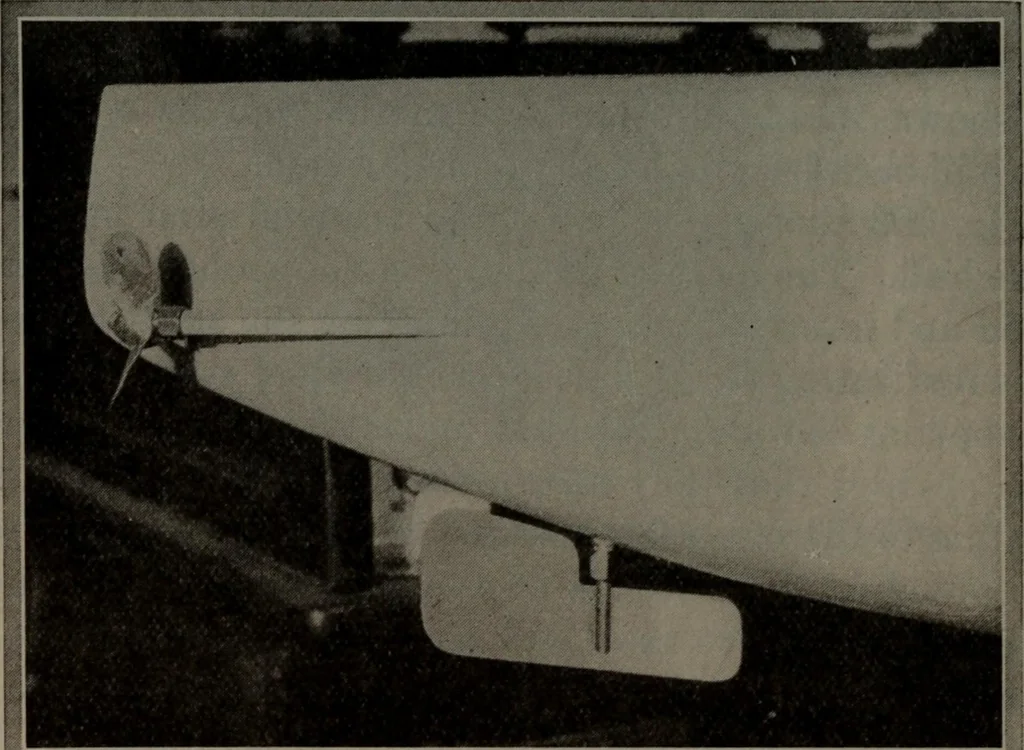

made from each. The relation of the propellers to thehull is shown in Fig. 205. They are secured to the shafts 298 Model Engineering by a simple screw thread and pinned to prevent loosen-ing. This threading operation was easily accomplishedby chucking the propeller in the three-jaw chuck,… … Fig. 207—The stern of the submarine hull, showing one of the propellers and the rudder mechanism in position. Fig. 209 shows the rudder mech-anism in parts, giving an idea of the proportions of eachpiece to the others. For the constructural data, the reader is referred toFigs. 210, 211, and 213,…
Machinery
