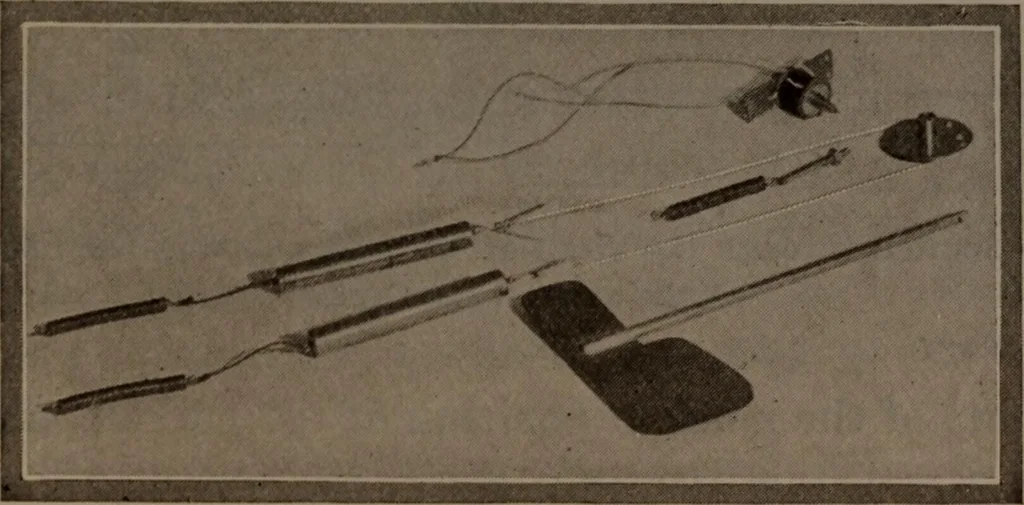

Fig. 208—The rudder control mechanism The latter passes through a brass pipe sleeve or housingfitted with packing glands at either end. To the top of the rudder post is fitted a brass dischaving a shallow groove turned in its periphery to carry- … Fig. 209—The parts of the rudder control mechanism the * ^ tiller cord or its equivalent in this case. The con-struction and assembly of post and disc is clearly shownin the detail drawing, Fig. 210. The hub of the disc issweated with solder to the disc. The projecting arm of 300 Model Engineering…
