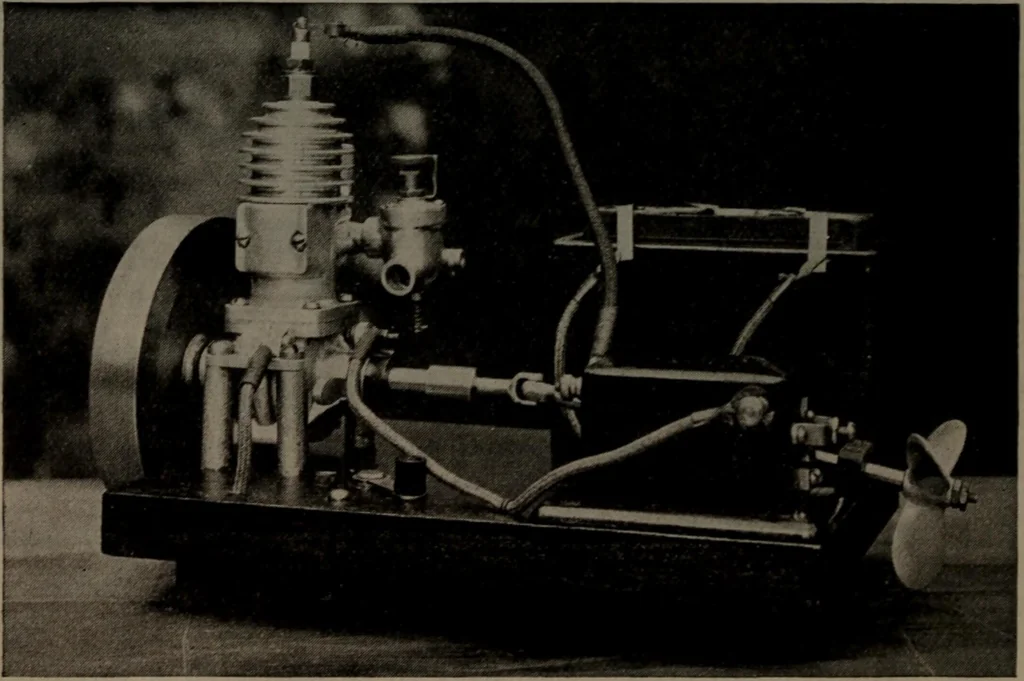

er hole in a plug screwedinto the spark plug opening. The turning of the flanges is done while the castingis on the arbor. A special tool may be ground for thispurpose from a piece of self-hardening steel. The con-tour is well shown in the photographs, while the dimen-sions may be taken directly… … Fig. 273—The complete engine assembled, with ignition apparatus of the piston. Aside from filing the port and by-passcover seats, and drilling the holes in the cylinder basefor holding do^vm screws, the work on the cylinder cast-ing may rest at this point for the present. The two halves of the…
