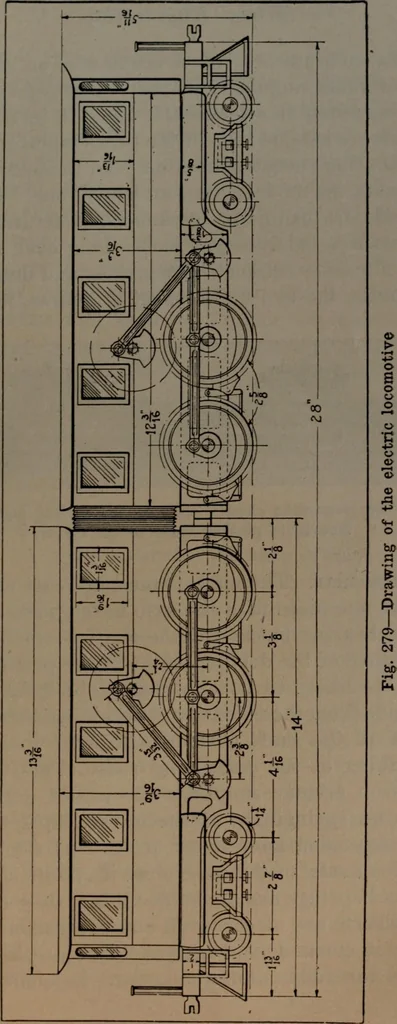

^ coupled sections having two pairs of drivers anda four-wheeled bogie truck each, and carr^dng a singlemotor, which is mounted mth its shaft transversely of the 346 … 348 Model Engineering frame, in each unit. From a crank disc on eacli end ofthe motor shaft, angularly placed connecting rods lead toa crank mounted on a jackshaft, Avhich in turn is coupledto the drivers by side rods of the type employed on steammachines. This construction, unusual in electric…
