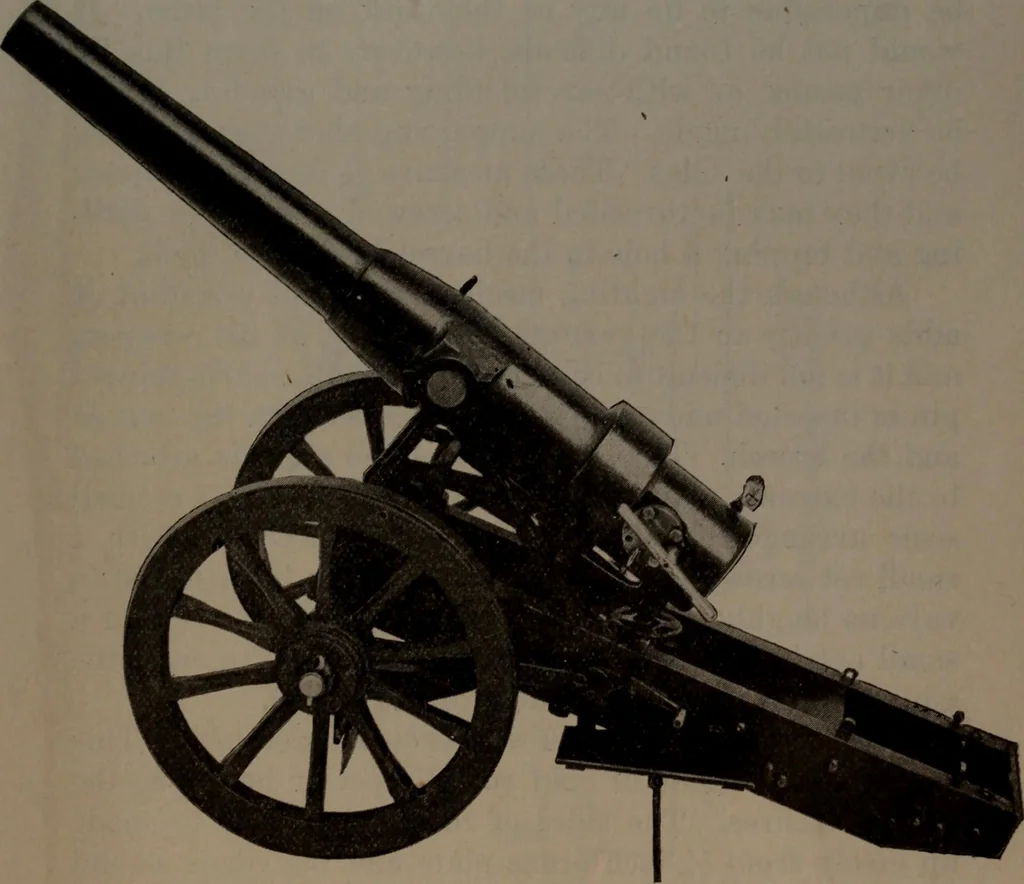

lished with fine carborundum cloth. The breech mechanism is made next and this is verysimple, consisting merely of a solid piece of cold rolledsteel cut to the dimensions shown. This is inserted inthe transverse hole through the breech of the gun after 372 A Model Siege Gun 373 the shell has been… … Fig. 300—The model siege gun completely assembled and elevated at 45 degrees arrangement is shoAvn in the detail drawing. A smallplate which covers this mechanism is sawed from a pieceof 1-inch cold rolled steel and fixed to the breech withsmall screws. A small hook, with a thread at one end,is…
