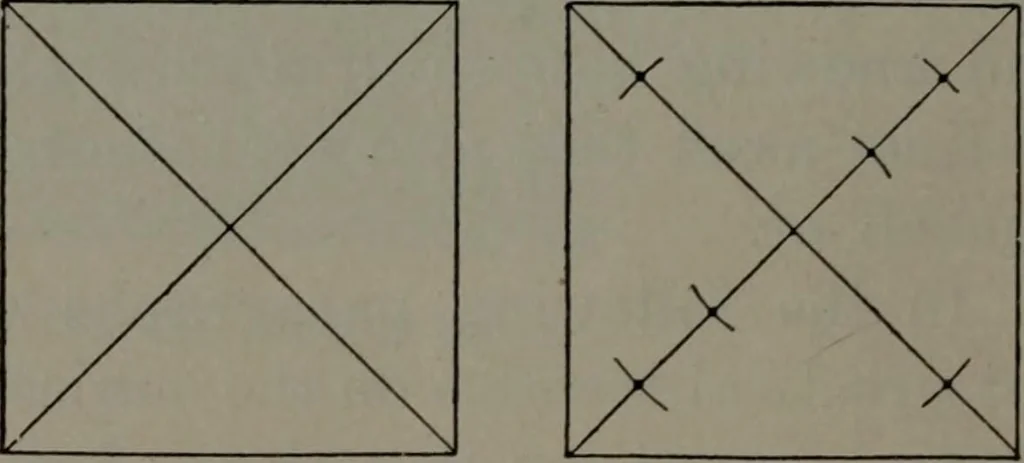

Fig. 41 Fig. 42 Fig. 43 Fig. 41—How the plate is to be drilledFig. 42—Finding the exact centerFig. 43—Locating the holes in the center, scratch a small arc in each corner of theplate so it crosses the line we first drew. This is shownin Fig. 43. With the dividers open to % inch and thepoint in the…
