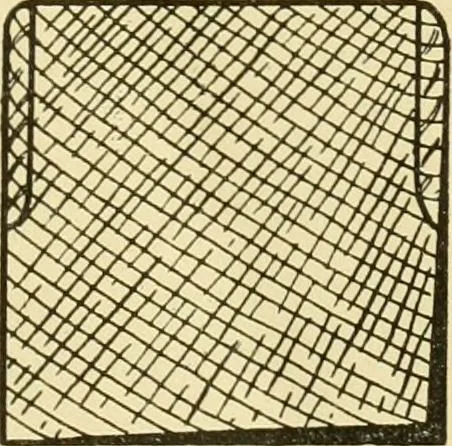

ctional side view of anordinary jack plane. The names ofits parts are as follows :—A, toat orhandle; B, body or stock ; C, toe;D, nose; E, heel; F, escapement;G, mouth, on one side nearly vertical,on the other at 45 deg.; H, wedge;I, cutting iron ; J, cap or back iron ;K, sole; L, screw. These… … End of Plane, withRays in RightDirection. End of Plane, show-ing Rays in WrongDirection. MODERN CABINETWORK, FURNITURE, AND FITMENTS
