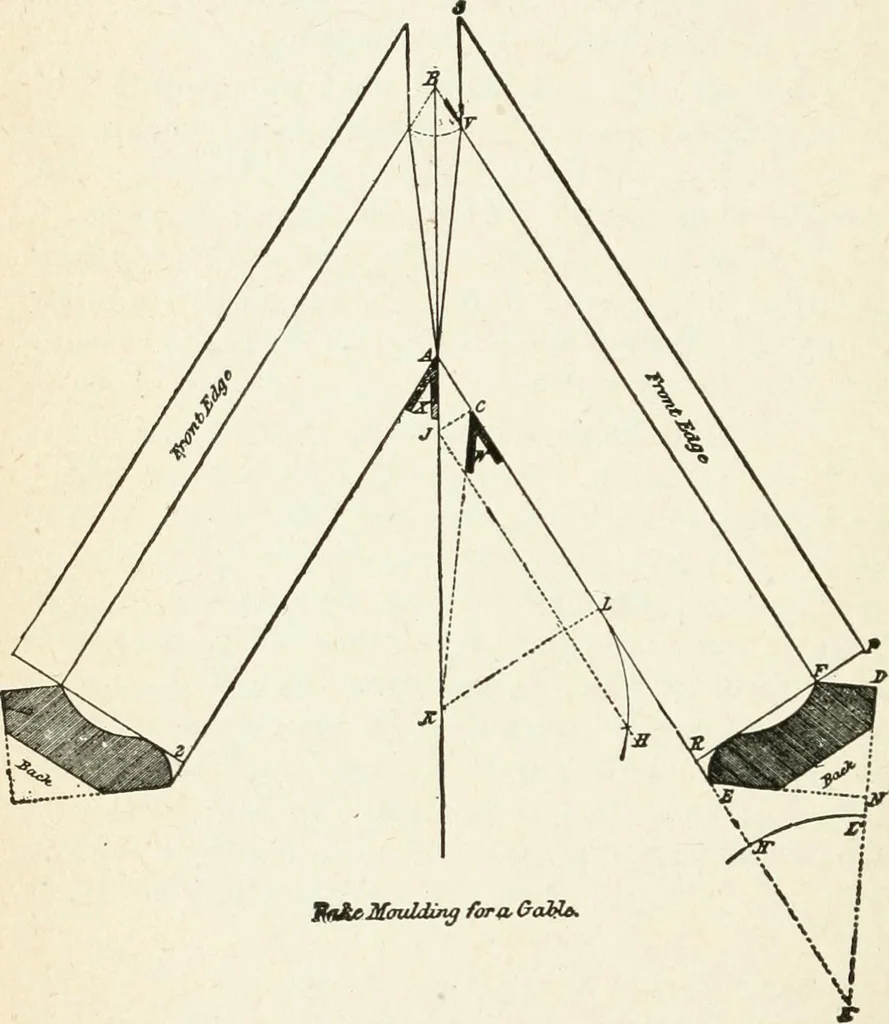

join C K. This gives bevel W for cut on back of mould-ing. A most perfect illustration of this may be had byhaving the drawing on card-board, and cutting it clearthrough all the outer lines, including that of the mould-ing on lines F D N E, making a hinge by a slight cuton line RF; also make a… … Jlm/^MoulcUiy for a, &ai^ Fig. 7. on the left. All the cuts being made, raise both sideson hinges A R and A 2; push the sections of mould-ings on right and left from you; make front edge rest PRACTICAL SOLUTIONS 141 on FD. Now bring mitres together, and we have apractical illustration of…
