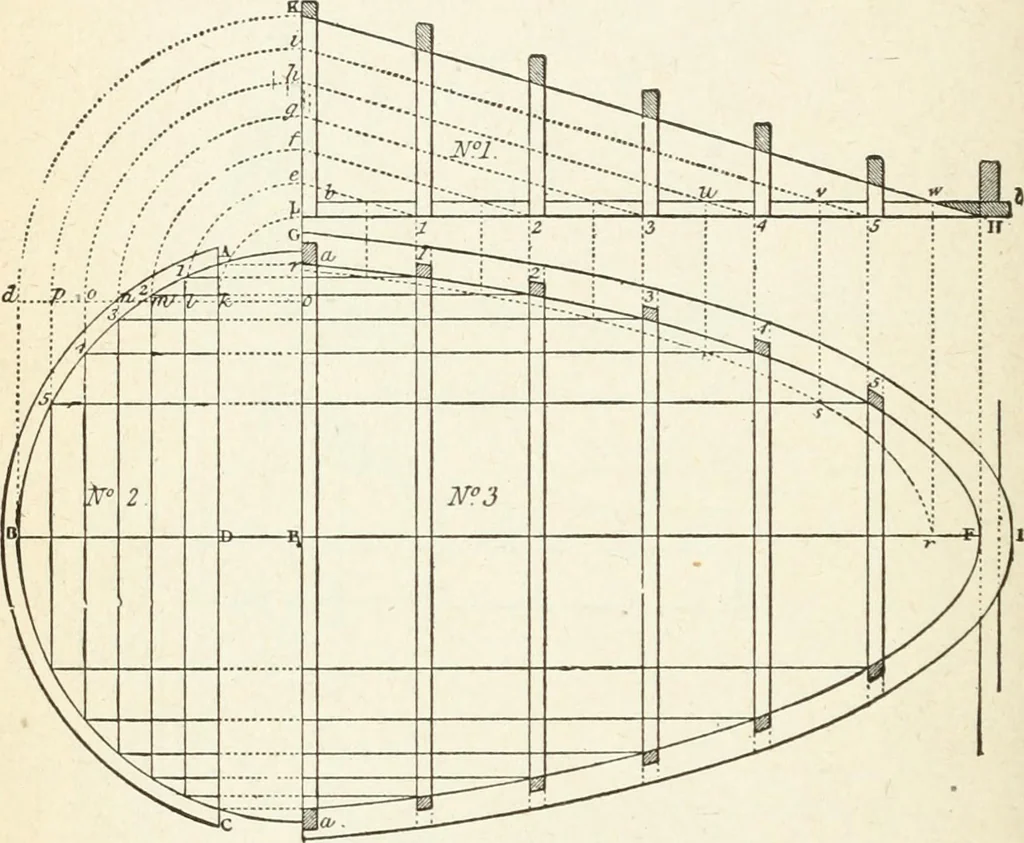

bracket at Meeting ot Coves ot Equal Heightbut Unec|ual Projection Fig. 22. Fig. 22 shows the method of finding the angle-bracketat the meeting of coves of equal height but unequalprojection. The height C B is equal to G H, but theprojection B A is greater than H I. 158 MODERN CARPENTRY Fig. 23,… … Curb and Ribs ol Circular Arch Cutting into Sloping CeilingFig. 23. equal parts in c, f, g, h, i, and the same heights aretransferred to the main rib in No. 2 at A, 1, 2, 3, 4, 5, B.Through the points A, 1, 2, 3, 4, 5, in No. 2 lines aredrawn parallel to the axis BE I; and through thepoints e, f,…
