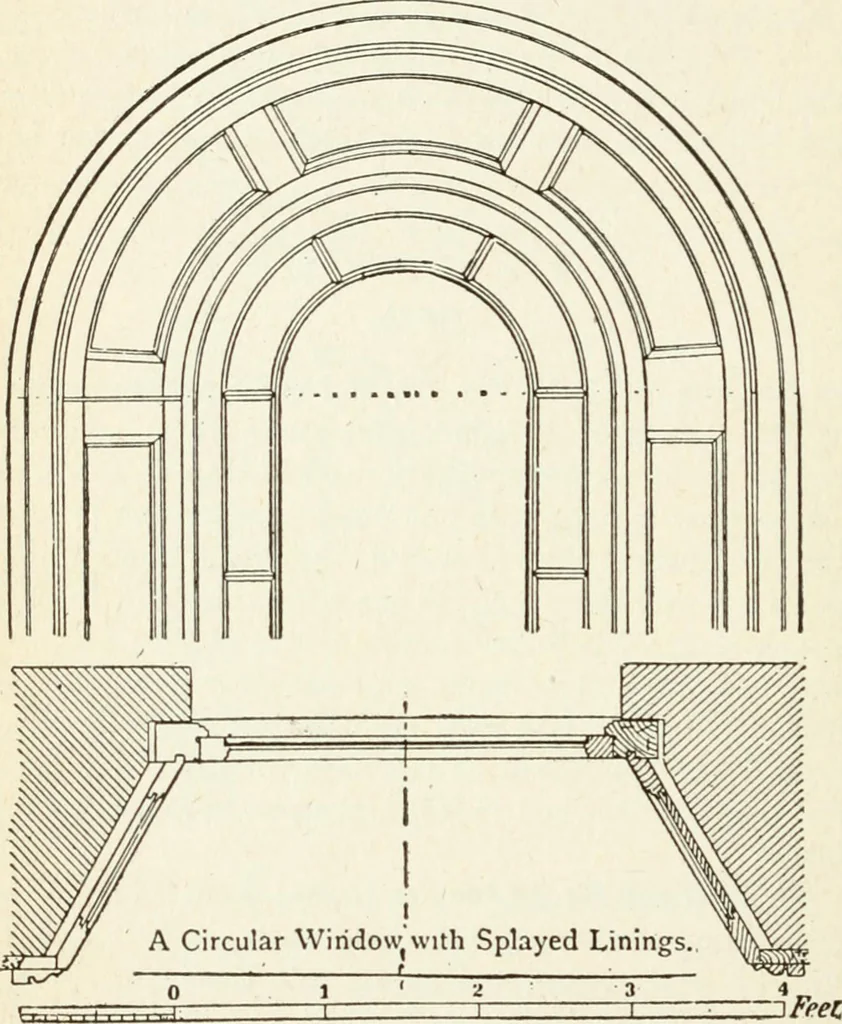

line of the bar into equal parts, as 1, 2, 3, 4, 5,Fig. 30, and project the points into the plan, cuttingthe chord line J J in 1, 2, 3, 4, 5. Erect perpendicu-lars upon the centre line from the points of division,and make them equal in length to the distance of thecorresponding points in the plan… … Fig. 40. The soft moulds for the head linings are obtained insimilar manner to those for the head mould, the widthbeing gauged from the head itself PRACTICAL SOLUTIONS 175 A Frame Splayed Lining with Circular Soffit as shown in part elevation in Pig. 39, plan Fig. 40, andsection Fig. 41. The soffit…
